Section 364 (Information And Entertainment System - General Information - Vehicles Without: Sync)
>>
Description And Operation
>>

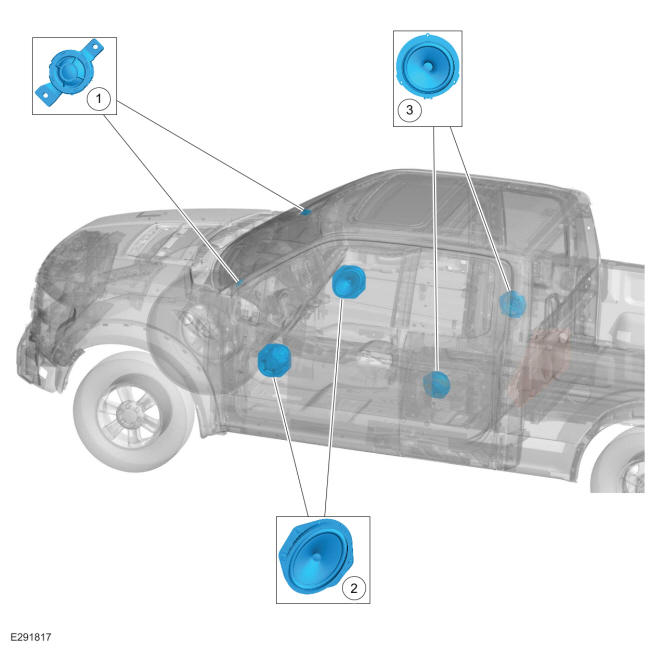

Information and Entertainment System - Component Location
>>
6 Speaker System
6 Speaker System
WARNING:
This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Tweeter speakers
2
Front door speakers
3
Rear door speakers
