Fender Splash Shield - Raptor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.
- Remove the wheel and tire. Refer to: Wheel and Tire .
- Remove the front fender molding. Refer to: Front Fender Molding - Raptor .

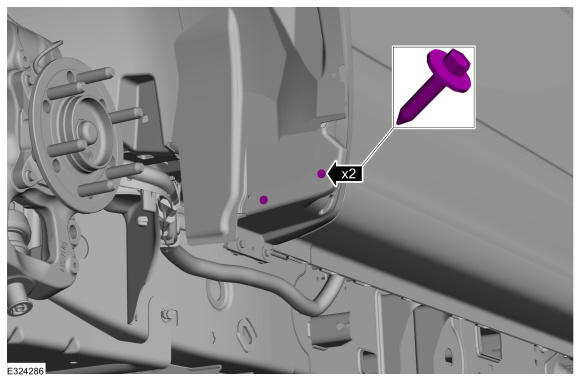

- Remove the bolts.
Torque: 15 lb.in (1.7 Nm)

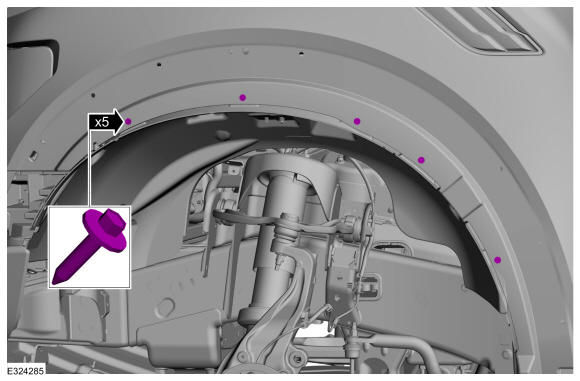

- Remove the bolts.
Torque: 15 lb.in (1.7 Nm)

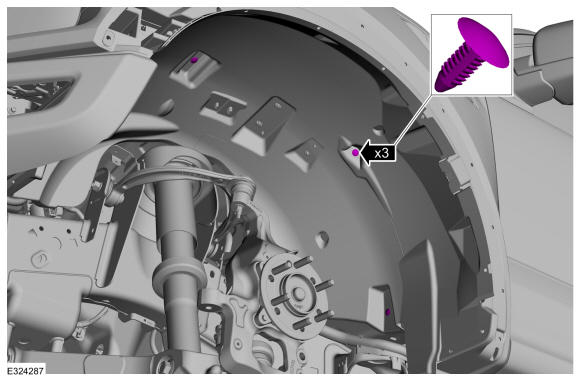

- Remove the pin-type retainers.
-
NOTE: Pin-type retainers vary based on trim level.

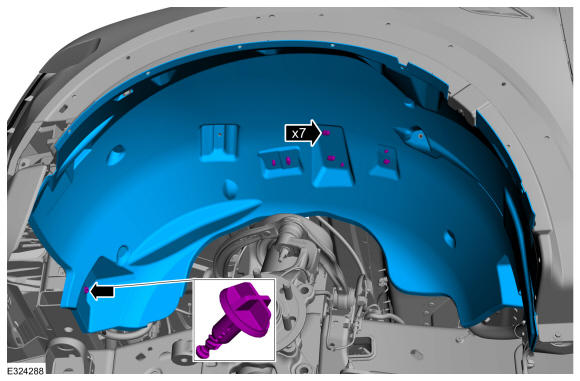

Remove the pin-type retainers and the fender splash shield.
