Cowl Panel: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the cowl panel grille. Refer to: Cowl Panel Grille .

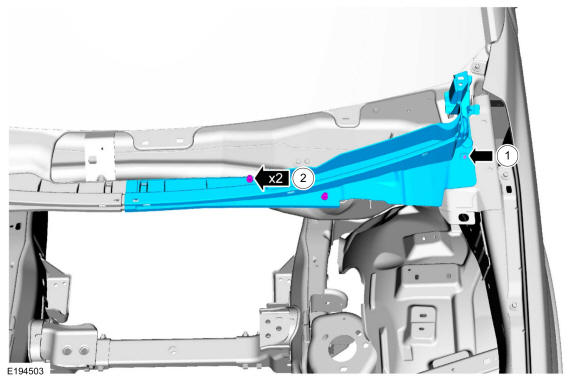

  2. Remove the LH cowl panel.

    1. Remove the screw.
    2. Remove the pin-type retainers and the LH cowl panel.

    GFD466133Courtesy of FORD MOTOR COMPANY

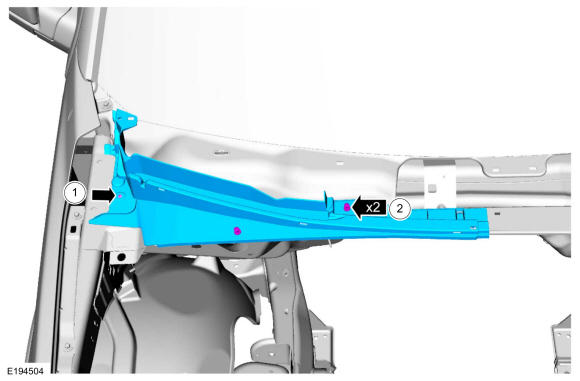

  3. Remove the RH cowl panel.

    1. Remove the screw.
    2. Remove the pin-type retainers and the RH cowl panel.

GFD466134Courtesy of FORD MOTOR COMPANY
