Cowl Panel Grille: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Both sides

  1. Remove the wiper pivot arm. Refer to: Windshield Wiper Pivot Arm .

    LH side

  2. Lift the cowl trim panel to release the underside pin-type retainers.
    GFD466135Courtesy of FORD MOTOR COMPANY

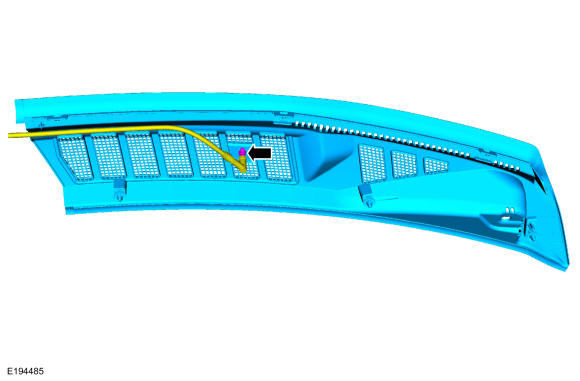

  3. Disconnect the windshield washer tube and remove the cowl panel grille.
    GFD466136Courtesy of FORD MOTOR COMPANY

    RH side

  4. Lift the cowl trim panel to release the underside pin-type retainers.

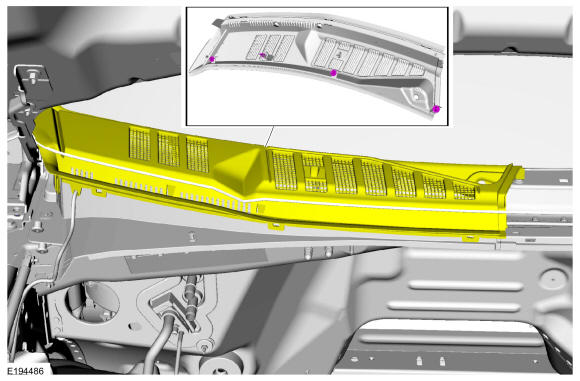

    GFD466137Courtesy of FORD MOTOR COMPANY
  5. Disconnect the windshield washer tube and remove the cowl panel grille.
GFD466138Courtesy of FORD MOTOR COMPANY
