Active Grille Shutter: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Upper active grille shutter

Remove the radiator grille. Refer to: Radiator Grille .

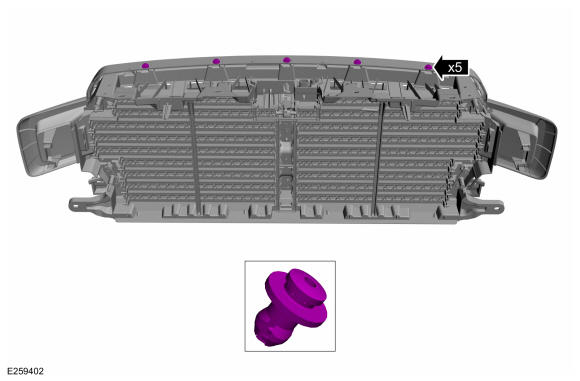

Remove the push pins.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the deflector.

Courtesy of FORD MOTOR COMPANY
Remove the clips.

Courtesy of FORD MOTOR COMPANY

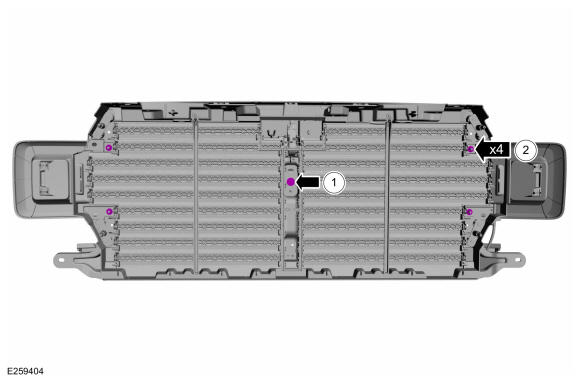

Remove the screw and the nuts.
Torque: 1: 22 lb.in (2.5 Nm) 2: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with front camera, disconnect the camera and the washer hose.

Separate the active grille shutter from the radiator grille.

Courtesy of FORD MOTOR COMPANY

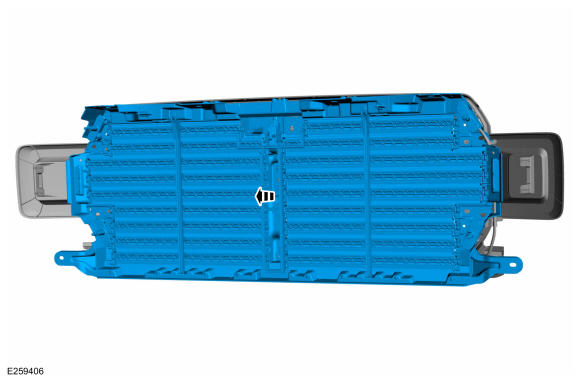

Remove the upper active grille shutter.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with front camera, remove the wire harness and the washer hose.

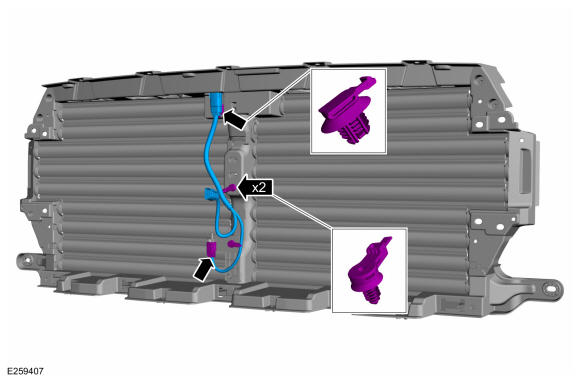

Disconnect the electrical connector, remove the pin-type retainers and the wire harness.

Courtesy of FORD MOTOR COMPANY

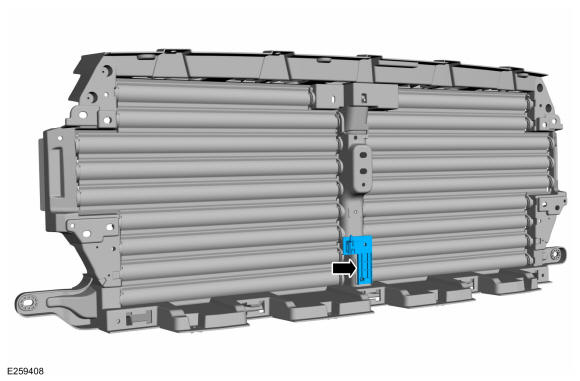

Remove the ambient air temperature sensor and bracket.

Courtesy of FORD MOTOR COMPANY

Lower active grille shutter
Remove the front bumper. Refer to: Front Bumper .
Disconnect the active grille actuator electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the pin-type retainers and position aside the wire harness.

Courtesy of FORD MOTOR COMPANY
Remove the bolts.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

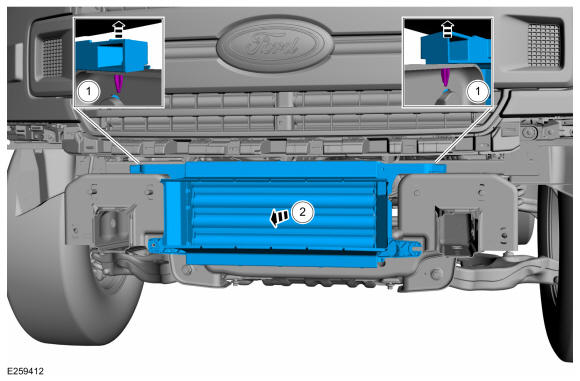

Remove the lower active grille shutter.
1. Lift up the lower active grill shutter.
2. Pull out and remove the lower active grille shutter.

Courtesy of FORD MOTOR COMPANY
