Active Grille Shutter Actuator: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Upper active grille shutter actuator
- Remove the radiator grille. Refer to: Radiator Grille .

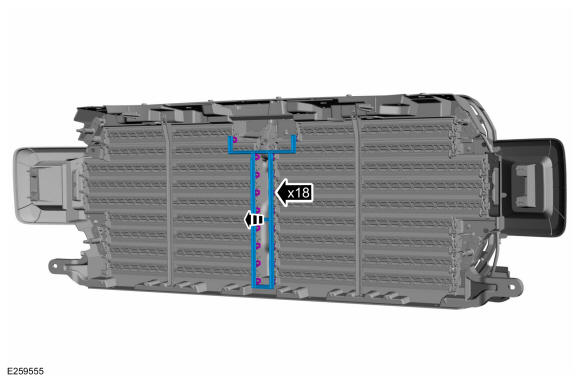

- Release the clips, and remove the linkage.
-
NOTE: The upper active grille shutter actuator is not interchangeable with the lower active grill shutter actuator. Do not attempt to replace one actuator with the other.

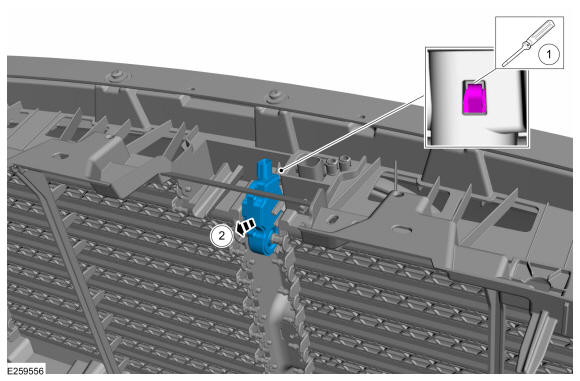

Using a screwdriver, push down on the clip and remove the upper active grille shutter actuator.
Lower active grille shutter actuator
- Remove the lower Active Grille Shutter. Refer to: Active Grille Shutter .

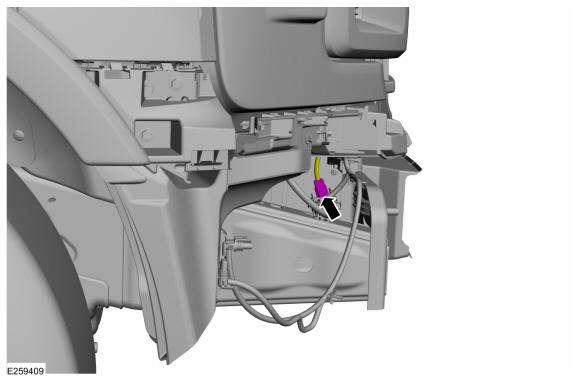

- Disconnect the electrical connector.
- Remove the clip.
-
NOTE: The upper active grille shutter actuator is not interchangeable with the lower active grill shutter actuator. Do not attempt to replace one actuator with the other.

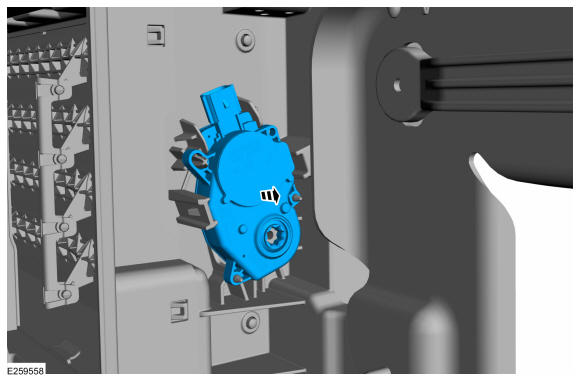

Remove the lower active grille shutter actuator.
