Active Grille Shutter Actuator - 3.0L Power Stroke Diesel: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Upper active grille shutter actuator

Remove the radiator grille. Refer to: Radiator Grille .

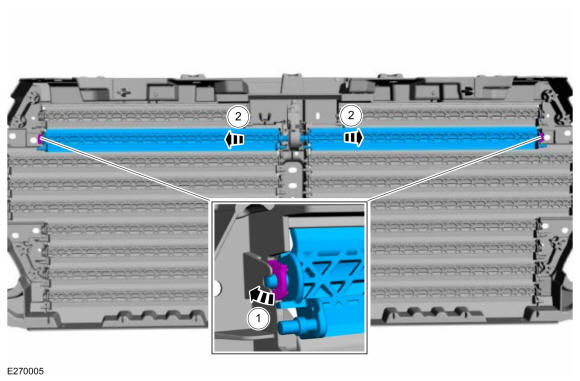

Release the clips, and remove the linkage.

Courtesy of FORD MOTOR COMPANY
Remove the actuator clip.

Courtesy of FORD MOTOR COMPANY
Push the tabs at the edge to remove the drive vanes.

Courtesy of FORD MOTOR COMPANY
NOTE: The upper active grille shutter actuator is not interchangeable with the lower active grill shutter actuator. Do not attempt to replace one actuator with the other.

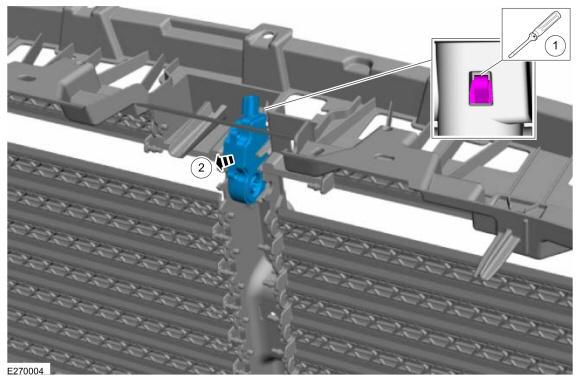

Using a screwdriver, push down on the clip and remove the upper active grille shutter actuator.

Courtesy of FORD MOTOR COMPANY

Lower active grille shutter actuator
Remove the lower active grille shutter. Refer to: Active Grille Shutter .
Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

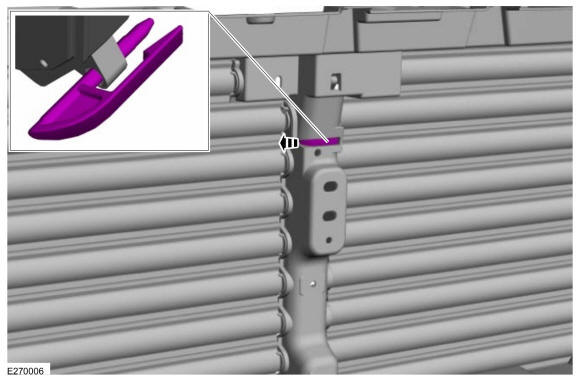

Remove the clip.

Courtesy of FORD MOTOR COMPANY
NOTE: The upper active grille shutter actuator is not interchangeable with the lower active grill shutter actuator. Do not attempt to replace one actuator with the other.

Remove the lower active grille shutter actuator.

Courtesy of FORD MOTOR COMPANY
