Active Grille Shutter - Raptor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
Upper active grille shutter
- Remove the radiator grille. Refer to: Radiator Grille - Raptor .

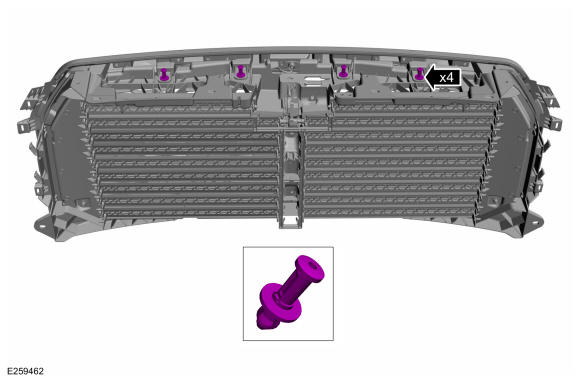

- Remove the push pins.

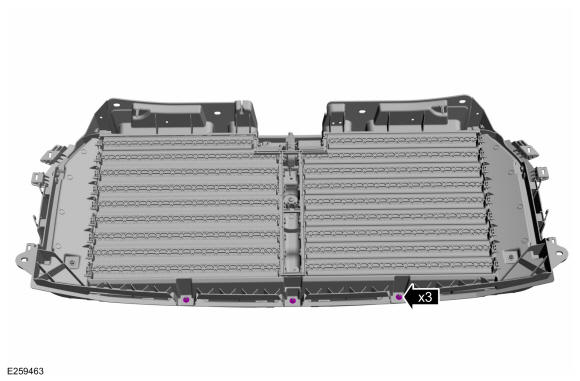

- Remove the nuts.
Torque: 44 lb.in (5 Nm)

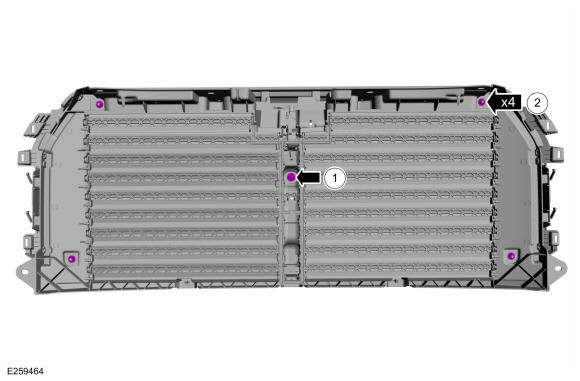

- Remove the screw and the nuts.
Torque: 1: 22 lb.in (2.5 Nm) 2: 44 lb.in (5 Nm)
-
NOTE: If equipped with front camera, disconnect the camera and the washer hose.

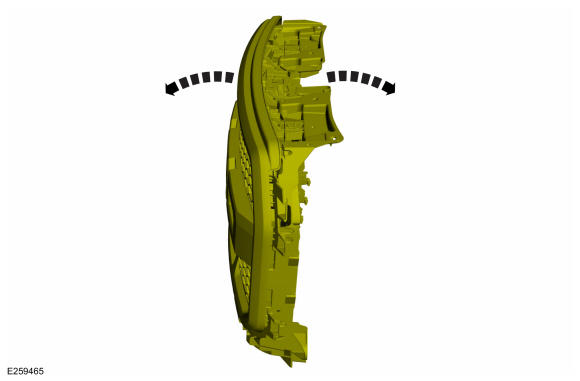

Separate the active grille shutter from the radiator grille.

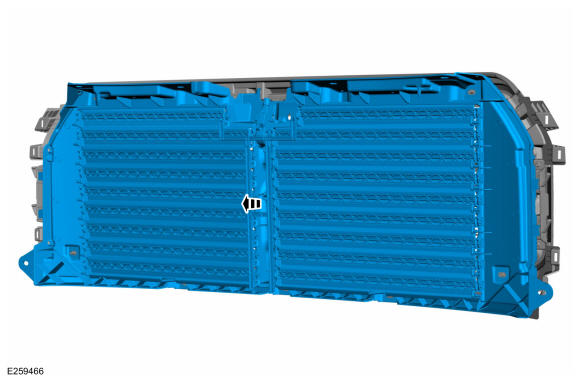

- Remove the upper active grille shutter.
-
NOTE: If equipped with front camera, remove the wire harness and the washer hose.

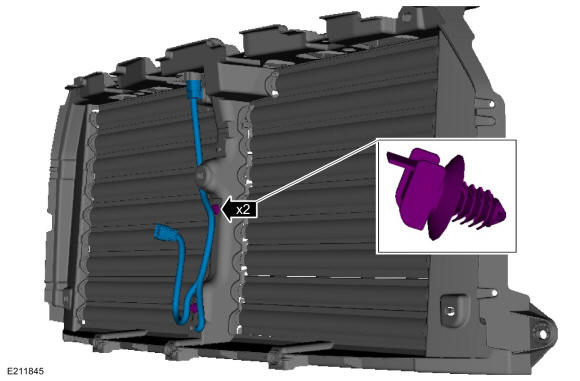

Remove the pin-type retainers and the wire harness.
Lower active grille shutter
- Remove the front bumper. Refer to: Front Bumper - Raptor .

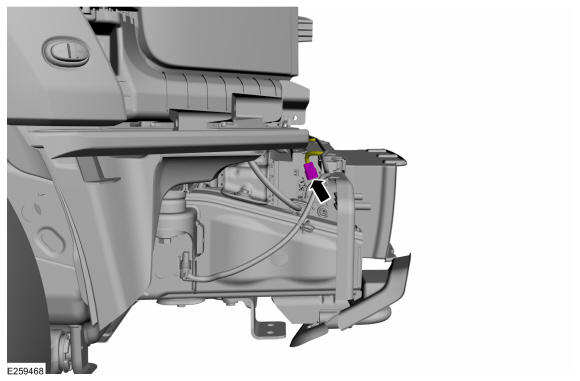

- Disconnect the active grille actuator electrical connector.

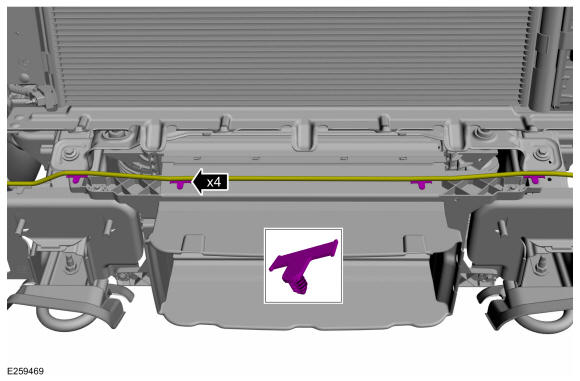

- Remove the pin-type retainers and position aside the wire harness.

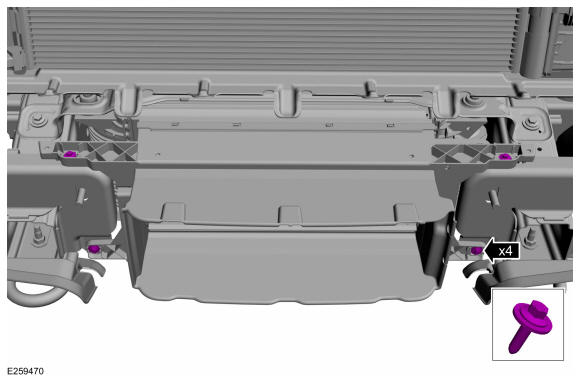

- Remove the bolts.
Torque: 62 lb.in (7 Nm)
- Remove the lower active grille shutter.

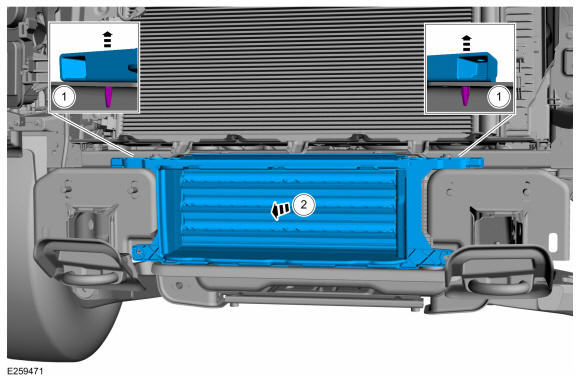

- Lift up the lower active grill shutter.
- Pull out and remove the lower active grille shutter.
