Front Seat: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

Position the seat to access the front seat bolts.
- If a power seat cannot be positioned horizontally to access the front seat bolts, diagnose the inoperative horizontal seat track motor. Refer to: Front Seats .
Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Disconnect the seat harness electrical connector(s).
1. Detach the wire harness from the pin-type retainer.
2. Release the locking tab(s) and rotate the position assurance lever(s).
Courtesy of FORD MOTOR COMPANY

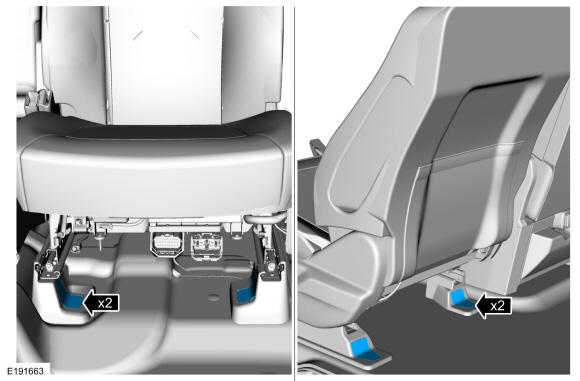

Remove the front seat shield bolt caps.

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphics for this step in the installation.

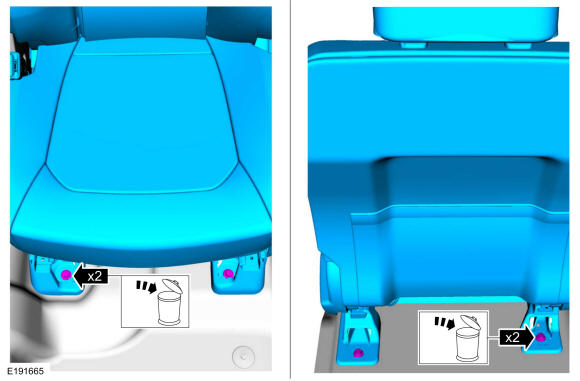

Remove the bolts and the front seat.

Courtesy of FORD MOTOR COMPANY
