Front Seat Track: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- If equipped with manual lumbar, adjust the manual lumbar to the fully relaxed position.
- Remove the front seat cushion and cover as an assembly. Refer to: Front Seat Cushion Cover .

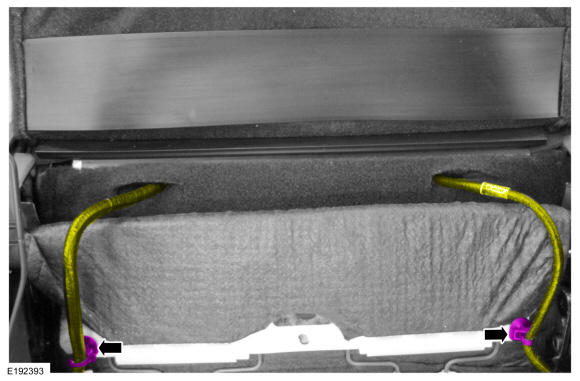

- Release the wire harness retainer(s) and position the wire harness(es) aside.
- If equipped with a multi-contour seat, remove the front seat cushion adjuster. Refer to: Front Seat Cushion Adjuster - Vehicles With: Multi-Contour Seats .
-
NOTE: This step is only necessary when the passenger seat is equipped with an original equipment (OE) OCS.
Remove the OCS. Refer to: Occupant Classification System (OCS) Sensor - Vehicles Without: Multi-Contour Seats . Refer to: Occupant Classification System (OCS) Sensor - Vehicles With: Multi-Contour Seats .
- If equipped with manual lumbar, position the cable away from the seat track.
- Disconnect the cable from the manual lumbar actuator.
- Detach the cable retainers from the seat track.
- Remove the screws and the recline cover.

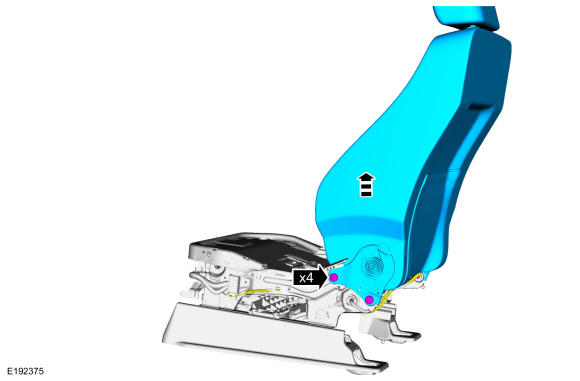

- Remove the bolts and the front seat backrest.
Torque: 33 lb.ft (45 Nm)
- Remove the safety belt buckle. Refer to: Front Seatbelt Buckle .
