Front Seat Track Motor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

NOTE: Positioning the seat fully upward provides access to service the seat track motor with the seat in the vehicle.

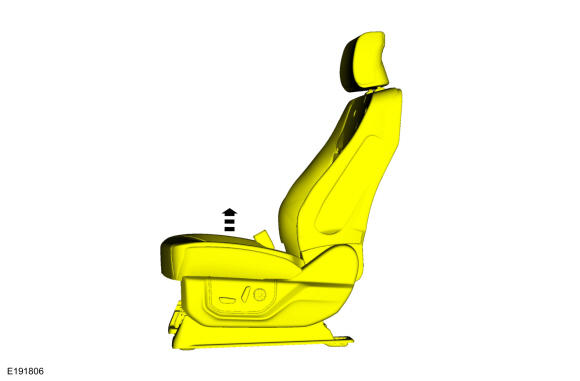

Move the front seat to the full upward position.

Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Disconnect the seat harness electrical connector(s).
1. Detach the wire harness from the pin-type retainer.
2. Release the locking tab(s) and rotate the position assurance lever(s).
Courtesy of FORD MOTOR COMPANY
Detach the seat track wire harness connector retainer(s) from the seat track motor.

Courtesy of FORD MOTOR COMPANY
NOTE: Seat track components are removed for clarity.

Disconnect the seat track motor electrical connector, detach the wire harness retainers and position the wire harness aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Seat track components and wiring harnesses are removed for clarity.

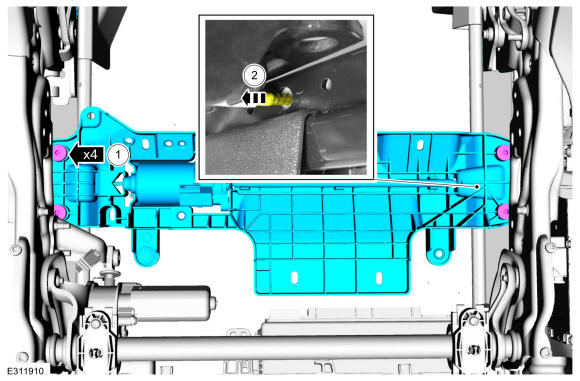

Remove the front seat track motor.
1. Remove the bolts.
2. Position the long seat track motor drive cable out of the seat track gearbox.

Courtesy of FORD MOTOR COMPANY
