Front Seat Power Lumbar Assembly: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

Regular Cab

Remove the front seat. Refer to: Front Seat .
Seats with heated/vented seats
Remove the front seat backrest blower motor. Refer to: Front Seat Backrest Blower Motor .
SuperCab and SuperCrew seats without heated/vented seats
Move the front seat to the full upward position.

Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Seats without heated/vented seat
Detach the electrical connector retainers and position the wiring harnesses aside.

Courtesy of FORD MOTOR COMPANY
Detach the backrest cover straps and position the backrest cover aside.

Courtesy of FORD MOTOR COMPANY
Detach the backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
Detach the hook-and-loop retainer and position the backrest cover strap aside.

Courtesy of FORD MOTOR COMPANY
NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.
1. Unzip the backrest cover zipper on each side.
2. Position the backrest cover upward.
3. Detach the J-clips from the lumbar wire.
Courtesy of FORD MOTOR COMPANY

All Seats

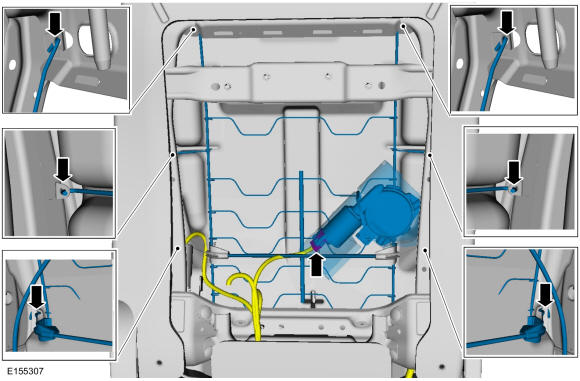

Disconnect the electrical connector, release the J-hooks, and remove the power lumbar assembly.

Courtesy of FORD MOTOR COMPANY
