Front Seat Power Lumbar Assembly - Vehicles With: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. Remove the SCMG or SCMH. Refer to: Driver Multi-Contour Seat Module [SCMG] .
  2. Remove the front seat backrest blower motor. Refer to: Front Seat Backrest Blower Motor .
  3. Release the backrest wire harness from the power lumbar spring and position the wire harness aside.

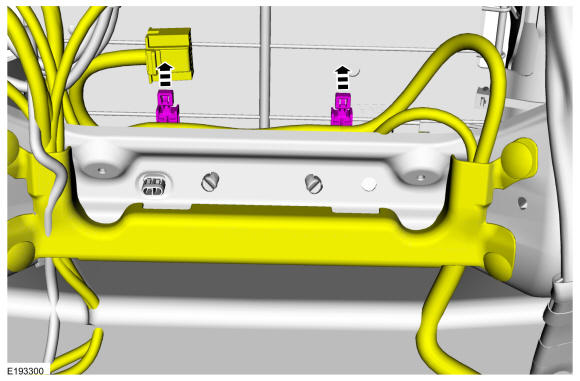

    GFD466658Courtesy of FORD MOTOR COMPANY
  4. Disconnect the power lumbar pump electrical connector and release the connector from the power lumbar spring.
    GFD466659Courtesy of FORD MOTOR COMPANY
  5. Remove the seat power lumbar assembly.

    1. Release the lower retainers.
    2. Position the backrest foam to access the seat power lumbar assembly pin-type retainer.
    3. Remove the pin-type retainer.
    4. Release the upper J-hooks.

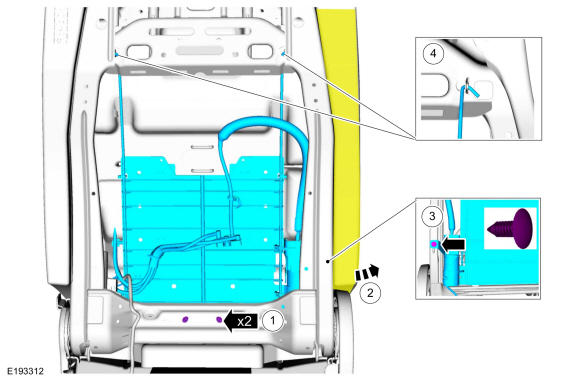

GFD466660Courtesy of FORD MOTOR COMPANY
