Front Seat Lumbar Assembly: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. Remove the front seat. Refer to: Front Seat .
  2. Adjust the manual lumbar to the fully relaxed position.
    GFD466616Courtesy of FORD MOTOR COMPANY

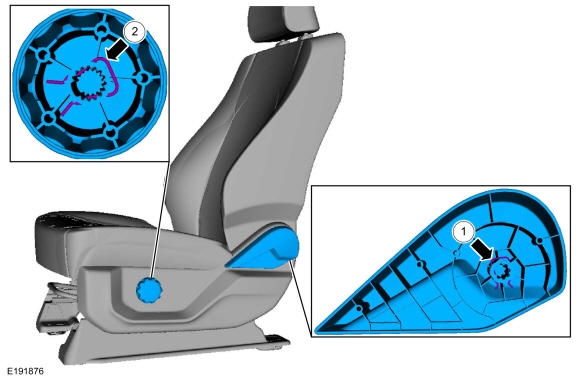

    1. Remove the clip and the recline handle.
    2. Remove the clip and the lumbar handle.
    GFD466617Courtesy of FORD MOTOR COMPANY
  4. Remove the side shield screws.
    GFD466618Courtesy of FORD MOTOR COMPANY

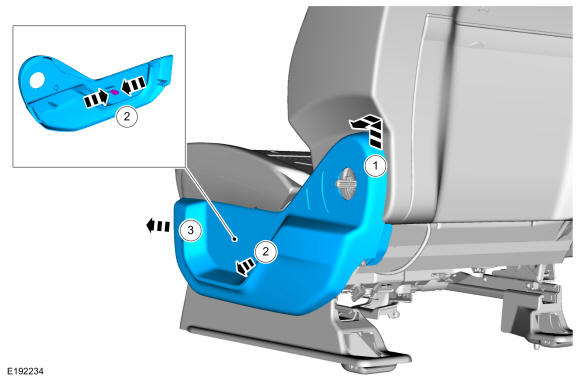

  5. NOTE: Side shield without manual lumbar shown, side shield with manual lumbar similar.

    Remove the side shield.

    1. Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.
    2. From underneath, squeeze the retainers together and pull out on the side shield.
    3. Slide the side shield forward.

    GFD466619Courtesy of FORD MOTOR COMPANY

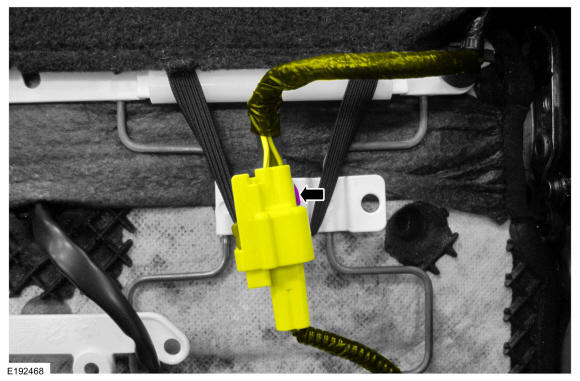

  6. Release the electrical connector retainer and position the side airbag wire harness aside.
    GFD466653Courtesy of FORD MOTOR COMPANY
  7. Detach the backrest cover straps and position the backrest cover aside.
    GFD466654Courtesy of FORD MOTOR COMPANY
  8. Detach the backrest cover lower J-clip.
    GFD466552Courtesy of FORD MOTOR COMPANY
  9. Detach the hook-and-loop retainer and position the backrest cover strap aside.
    GFD466553Courtesy of FORD MOTOR COMPANY
  10. NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

    1. Unzip the backrest cover zipper on each side.
    2. Position the backrest cover upward.
    3. Detach the J-clips from the lumbar wire.

    GFD466554Courtesy of FORD MOTOR COMPANY

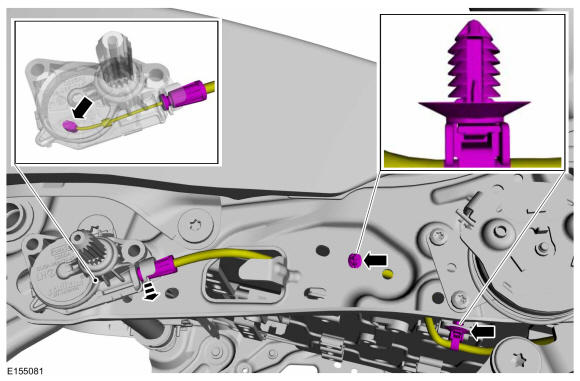

  11. NOTE: For installation, note the routing of the manual lumbar cable through the backrest cover opening.

    Position the lumbar assembly cable away from the seat track.

    • Disconnect the cable from the lumbar actuator.

    • Detach the cable retainers from the seat track.

    GFD466620Courtesy of FORD MOTOR COMPANY

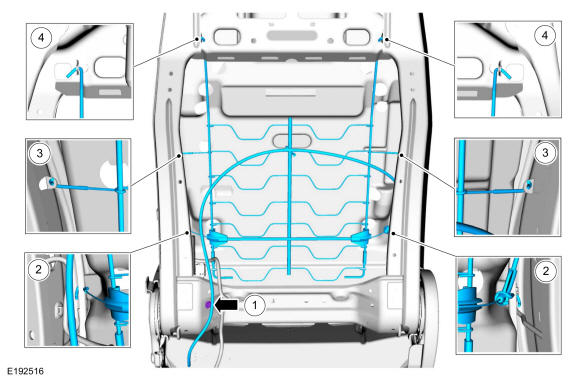

  12. Remove the lumbar assembly.

    1. Release the lumbar assembly cable retainer.
    2. Detach the lumbar assembly cable.
    3. Detach the lumbar assembly J-hooks.
    4. Detach the lumbar assembly upper J-hooks.

    GFD466655Courtesy of FORD MOTOR COMPANY

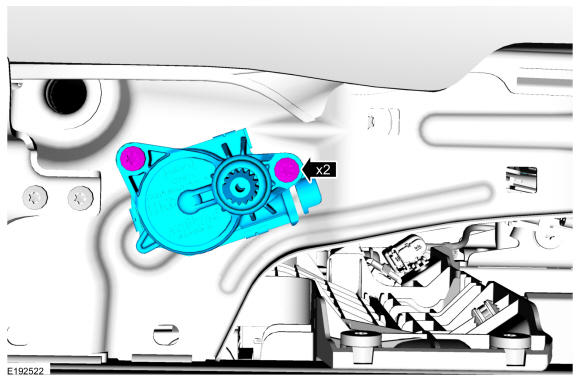

  13. If required. Remove the screws and the lumbar actuator.
GFD466656Courtesy of FORD MOTOR COMPANY
