Front Seat Cushion Blower Motor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. Remove the front seat cushion cover and foam as an assembly. Refer to: Front Seat Cushion Cover .

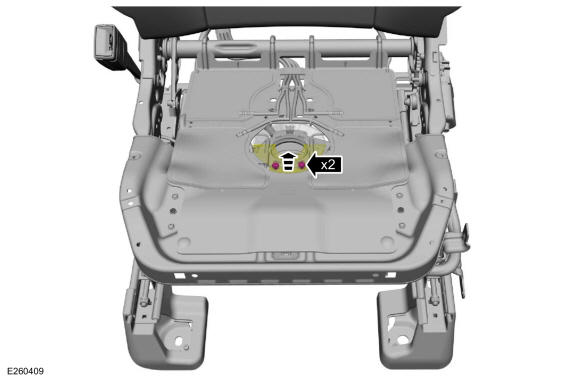

  2. Lift the edge of the front seat cushion blower motor air duct and remove the screws.
    GFD466651Courtesy of FORD MOTOR COMPANY

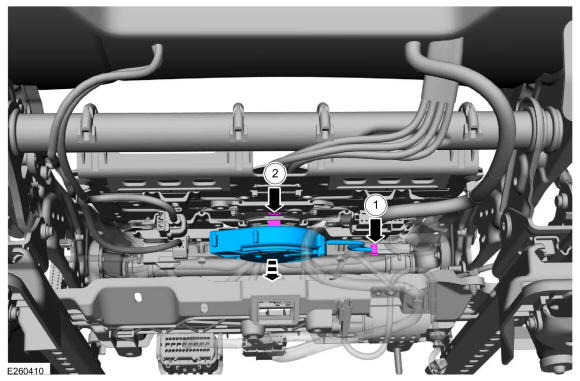

  3. Remove the front seat cushion blower motor.

    1. Disconnect the electrical connector.
    2. Release the retainer.

GFD466652Courtesy of FORD MOTOR COMPANY
