Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.

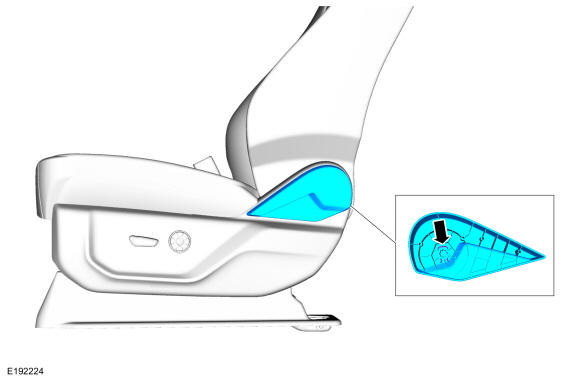

  1. If equipped, remove the clip and the recline handle.
    GFD466631Courtesy of FORD MOTOR COMPANY

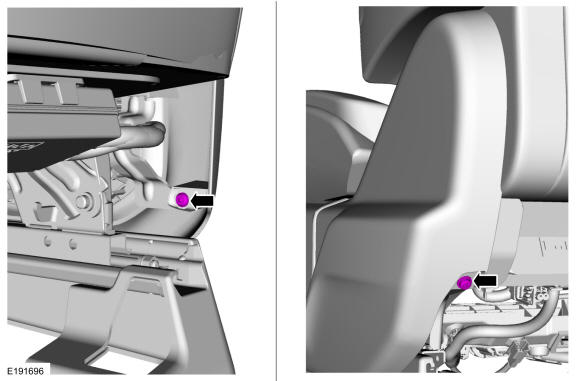

  2. Remove the side shield screws.
    GFD466618Courtesy of FORD MOTOR COMPANY

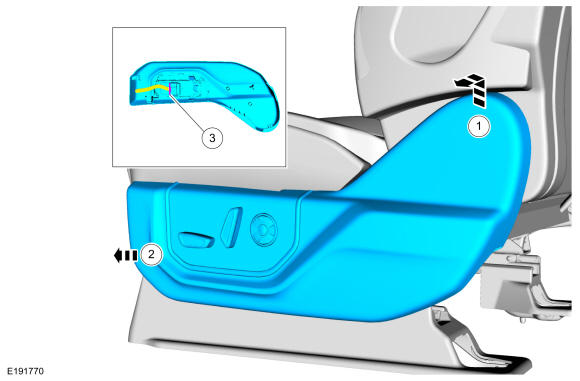

  3. NOTE: Side shield with power recline seat shown, all others similar.

    Remove the side shield.

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector.

    GFD466632Courtesy of FORD MOTOR COMPANY

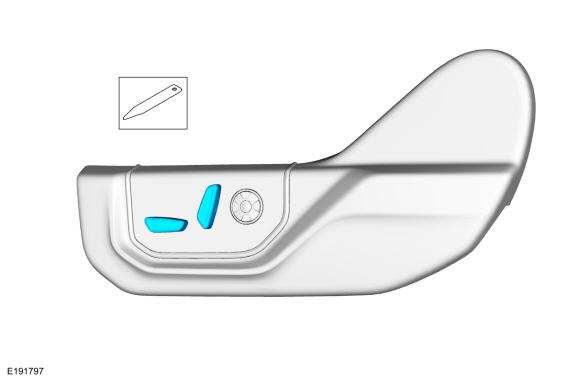

  4. Remove the seat control switch knob(s).
    GFD466648Courtesy of FORD MOTOR COMPANY

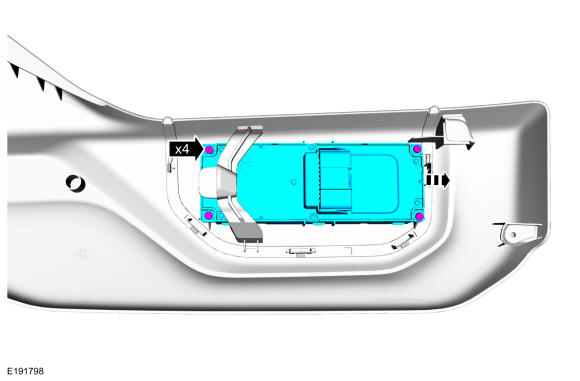

  5. Remove the screws and the seat control switch.
GFD466649Courtesy of FORD MOTOR COMPANY
