Front Seat Backrest Cover: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.
NOTE: Driver seat shown, passenger seat similar.

All seats

  1. Remove the front seat. Refer to: Front Seat .

    Manual seat with manual lumbar

  2. Adjust the manual lumbar to the fully relaxed position.
    GFD466616Courtesy of FORD MOTOR COMPANY
    1. Remove the clip and the recline handle.
    2. Remove the clip and the lumbar handle.
    GFD466617Courtesy of FORD MOTOR COMPANY
  4. Remove the side shield screws.
    GFD466618Courtesy of FORD MOTOR COMPANY
  5. Remove the side shield.

    1. Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.
    2. From underneath, squeeze the retainers together and pull out on the side shield.
    3. Slide the side shield forward.

    GFD466619Courtesy of FORD MOTOR COMPANY
  6. Position the manual lumbar assembly cable away from the seat track.

    • Disconnect the cable from the manual lumbar actuator.

    • Detach the cable retainers from the seat track.

    GFD466620Courtesy of FORD MOTOR COMPANY

    All seats

  7. Remove the front head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .
  8. Remove the side airbag. Refer to: Side Airbag .
  9. Disconnect the electrical connectors.
    GFD466621Courtesy of FORD MOTOR COMPANY
  10. Release the wiring harness retainer(s) and position the wiring harness(es) aside.
    GFD466622Courtesy of FORD MOTOR COMPANY
  11. NOTE: Power seat with power lumbar shown, manual lumbar similar.

    Feed the backrest wiring harness(es) out through the backrest cover opening(s).

    • If equipped, feed the manual lumbar cable out through the backrest cover opening.

    GFD466623Courtesy of FORD MOTOR COMPANY
  12. If equipped. Remove the front seat backrest blower motor. Refer to: Front Seat Backrest Blower Motor .
  13. If equipped.

    • Disconnect the backrest heater mat electrical connector.

    GFD466624Courtesy of FORD MOTOR COMPANY

    Multi-contour seat

  14. Detach the multi-contour seat cushion hose retainer. Release the locking tab and disconnect the hose coupling assembly (Red) from the SCMG.
    GFD466625Courtesy of FORD MOTOR COMPANY
  15. Feed the multi-contour seat hose assembly out through the backrest cover opening.
    GFD466626Courtesy of FORD MOTOR COMPANY

    All seats

  16. Remove the seat backrest cover and foam as an assembly.
    GFD466627Courtesy of FORD MOTOR COMPANY

    Vehicles with police package

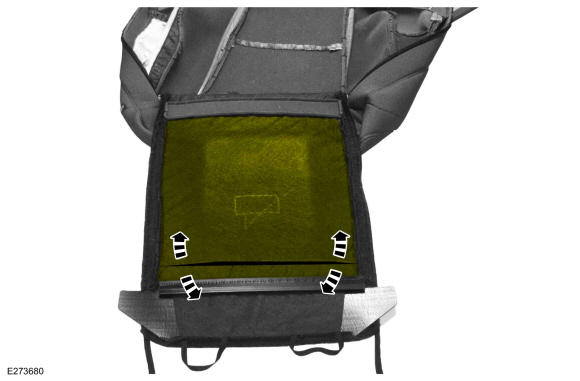

  17. Open the front seat stab shield pocket.
    GFD466628Courtesy of FORD MOTOR COMPANY

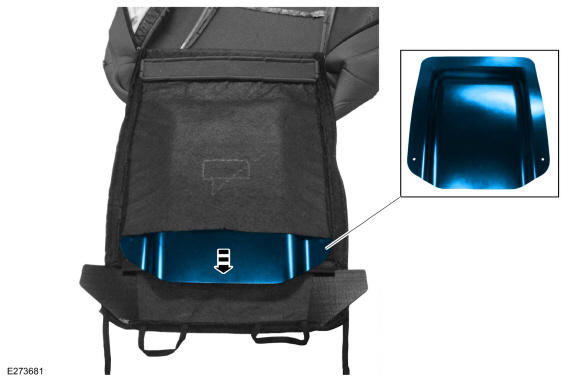

  18. NOTE: Note the orientation of the stab shield for installation.

    Remove the front seat stab shield.

    GFD466629Courtesy of FORD MOTOR COMPANY

    All seats

  19. NOTE: Use care when separating the backrest cover from the hook-and-arrows, or the hooks can be torn from the backrest foam pad.
    NOTE: Base front seat shown, all others similar.
    NOTE: This step is necessary only when installing a new component.

    Remove the seat backrest cover.

    1. Invert the seat backrest cover.
    2. Release the hook-and-arrows.

GFD466630Courtesy of FORD MOTOR COMPANY
