Front Seat Backrest Blower Motor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

Move the front seat to the full upward position.

Courtesy of FORD MOTOR COMPANY
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Detach the electrical connector retainers and position the wiring harnesses aside.

Courtesy of FORD MOTOR COMPANY
Detach the backrest cover straps and position the backrest cover aside.

Courtesy of FORD MOTOR COMPANY
Detach the backrest cover lower J-clip.

Courtesy of FORD MOTOR COMPANY
Detach the hook-and-loop retainer and position the backrest cover strap aside.

Courtesy of FORD MOTOR COMPANY
NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.
1. Unzip the backrest cover zipper on each side.
2. Position the backrest cover upward.
3. Detach the J-clips from the lumbar wire.
Courtesy of FORD MOTOR COMPANY

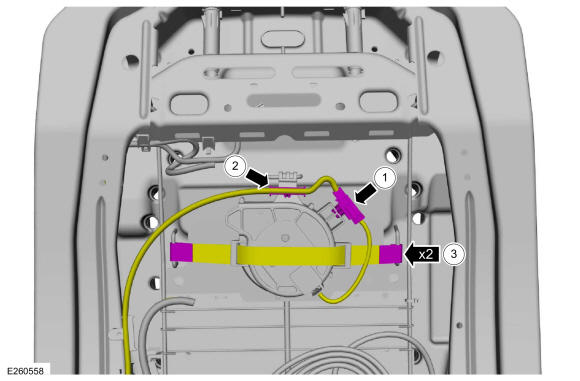

1. Detach and disconnect the electrical connector.
2. Detach the retainer and position the wiring harness aside.
3. Detach the front seat backrest blower motor strap J-hooks.
Courtesy of FORD MOTOR COMPANY
NOTE: Use care when detaching the front seat backrest blower motor retaining clips from the vent bag or the vent bag may tear from the front seat backrest foam.

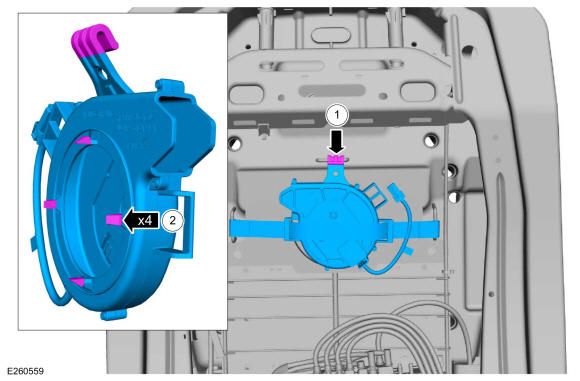

Remove the front seat backrest blower motor.
1. Detach the J-hook.
2. Detach the retaining clips.

Courtesy of FORD MOTOR COMPANY
