Front Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

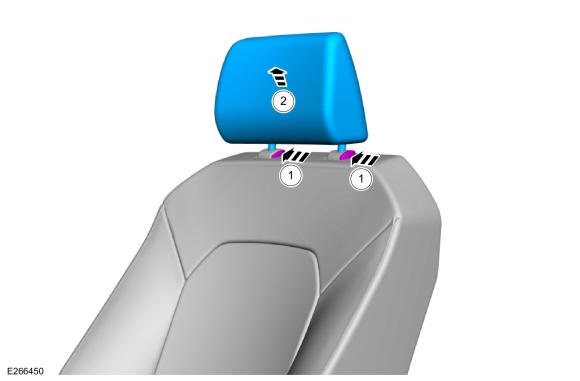

Vehicles without police package

Remove the front head restraint.
1. Depress the locking tabs.
2. Remove the front head restraint.
Courtesy of FORD MOTOR COMPANY

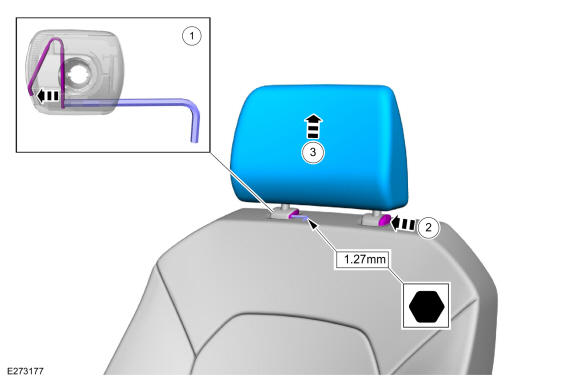

Vehicles with police package
Remove the front head restraint.
1. Insert a 1.27 mm (0.050 inch) hex key and release the head restraint guide sleeve internal locking spring.
2. Depress the locking tab.
3. Remove the front head restraint.
Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: Follow the unique instructions or graphics for this step in installation.

Remove the head restraint guide sleeve(s).
1. Release the tab. Use the General Equipment: Flat Headed Screw Driver
2. Remove the front head restraint guide sleeve.

Courtesy of FORD MOTOR COMPANY
