Front Center Seat Cushion Cover: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Remove the front center seat. Refer to: Front Center Seat .
  2. If equipped with rear cup holder. Disconnect the USB module electrical connectors.

    1. Disconnect the electrical connector.
    2. Disconnect the electrical connectors.
    3. Detach the retainers and position the wiring harness aside.
    4. Detach the retainer and position the wiring harness aside.

    GFD466563Courtesy of FORD MOTOR COMPANY
  3. If equipped with rear cup holder. Remove the rear cup holder assembly.

    1. Release the retainers.
    2. Disconnect the PATS center antenna electrical connector.
    3. Disconnect the auxiliary power point electrical connector.

    GFD466564Courtesy of FORD MOTOR COMPANY
  4. Position the seat cushion up.
    GFD466577Courtesy of FORD MOTOR COMPANY
  5. Remove the cup holder.
    GFD466578Courtesy of FORD MOTOR COMPANY
  6. Remove screws and the seat storage tray.
    GFD466579Courtesy of FORD MOTOR COMPANY
  7. Position the seat cushion down.
    GFD466580Courtesy of FORD MOTOR COMPANY
  8. Release the seat latch and fold the seat backrest down.
    GFD466581Courtesy of FORD MOTOR COMPANY

    Regular Cab

  9. Remove the backrest latch cover.
    GFD466582Courtesy of FORD MOTOR COMPANY
  10. Remove the screws, release the retaining clip and remove the RH side shield.
    GFD466583Courtesy of FORD MOTOR COMPANY
  11. Remove the screws, release the retaining clips and remove the LH side shield.
    GFD466584Courtesy of FORD MOTOR COMPANY
  12. Release the seat latch and raise the seat backrest up.
    GFD466585Courtesy of FORD MOTOR COMPANY

    SuperCab and SuperCrew

  13. Position the armrest storage compartment lid up.
    GFD466570Courtesy of FORD MOTOR COMPANY
  14. Remove the backrest latch cover.
    GFD466571Courtesy of FORD MOTOR COMPANY
  15. Remove the screws, release the retaining clip and remove the RH side shields.
    GFD466572Courtesy of FORD MOTOR COMPANY
  16. Remove the screws, release the retaining clips and remove the LH side shield.
    GFD466573Courtesy of FORD MOTOR COMPANY
  17. Release the seat latch and raise the seat backrest up.
    GFD466574Courtesy of FORD MOTOR COMPANY

    All vehicles

  18. Remove the seat cushion pivot bolts.

    Torque: 26 lb.ft (35 Nm)

    GFD466597Courtesy of FORD MOTOR COMPANY
  19. Release the LH side of the seat cushion from the seat cushion base and remove the seat cushion.
    GFD466598Courtesy of FORD MOTOR COMPANY

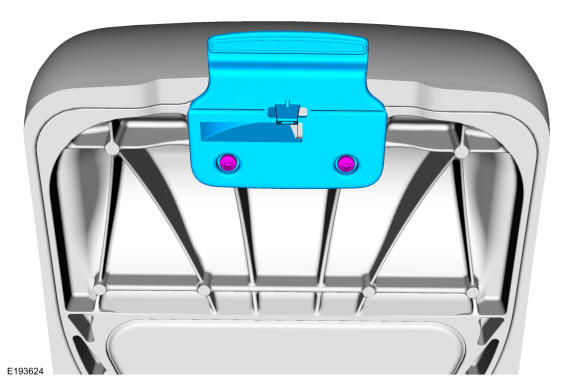

  20. Remove the screws and the seat cushion latch.
    GFD466599Courtesy of FORD MOTOR COMPANY
  21. Release the J-hook and position the cushion cover upward.
    GFD466600Courtesy of FORD MOTOR COMPANY

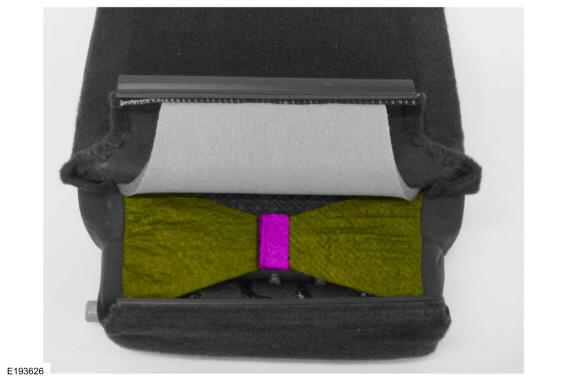

  22. Release the hook-and-loop retainer and position the cushion cover strap aside.
    GFD466601Courtesy of FORD MOTOR COMPANY
  23. NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strip or the hook-and-loop strip may be torn from the seat cushion foam pad.

    Release the hook-and-loop strip and position the cushion cover upward.

    GFD466602Courtesy of FORD MOTOR COMPANY
  24. Remove the front center seat cushion cover.
GFD466603Courtesy of FORD MOTOR COMPANY
