Front Center Seat Backrest: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front center seat. Refer to: Front Center Seat .
Disconnect the USB module electrical connectors.
1. Disconnect the electrical connector.
2. Disconnect the electrical connectors.
3. Detach the retainers and position the wiring harness aside.
4. Detach the retainer and position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY
Remove the rear cup holder assembly.
1. Release the retainers.
2. Disconnect the PATS center antenna electrical connector.
3. Disconnect the auxiliary power point electrical connector.
Courtesy of FORD MOTOR COMPANY

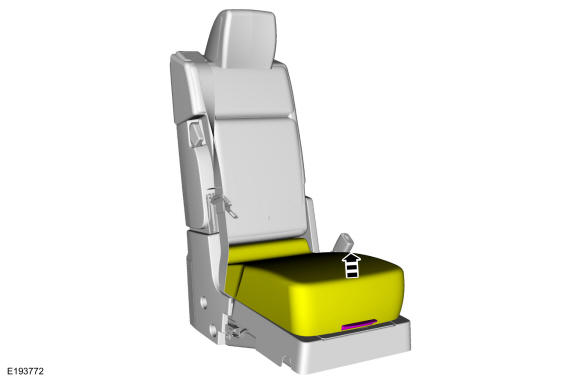

Position the seat cushion up.

Courtesy of FORD MOTOR COMPANY

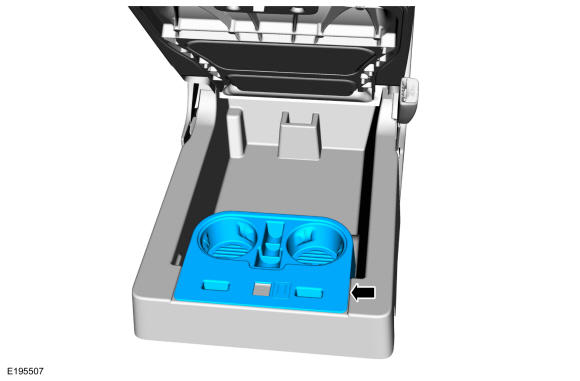

Remove the cup holder.

Courtesy of FORD MOTOR COMPANY

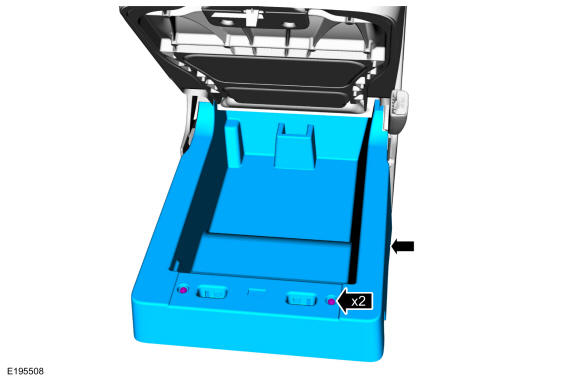

Remove screws and the seat storage tray.

Courtesy of FORD MOTOR COMPANY
Position the seat cushion down.

Courtesy of FORD MOTOR COMPANY
Release the seat latch and fold the seat backrest down.

Courtesy of FORD MOTOR COMPANY
Remove the head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .

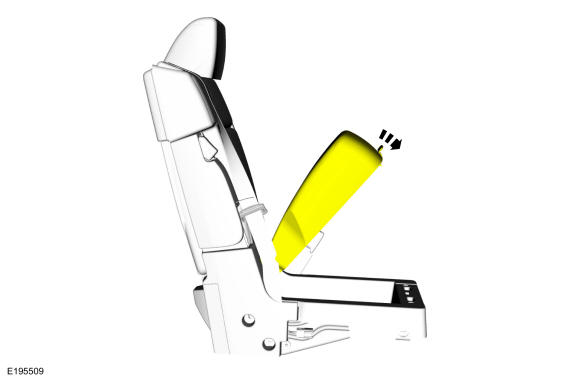

If equipped. Position the armrest storage compartment lid up.

Courtesy of FORD MOTOR COMPANY
Remove the backrest latch cover.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clip and remove the RH side shields.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clips and remove the LH side shield.

Courtesy of FORD MOTOR COMPANY

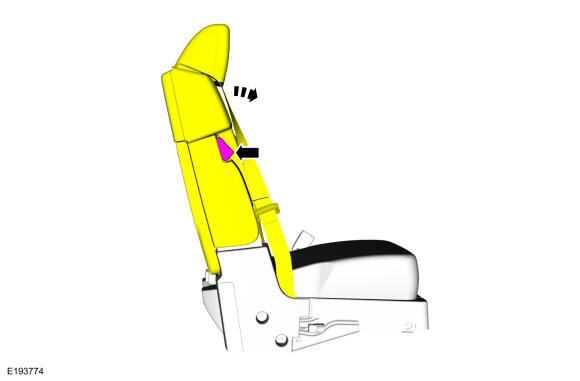

Release the seat latch and raise the seat backrest up.

Courtesy of FORD MOTOR COMPANY
Remove the safety belt anchor bolt.
Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the backrest.
1. Remove the stop bolt.
  Torque: 22 lb.ft (30 Nm)
2. Remove the pivot bolt.
  Torque: 33 lb.ft (45 Nm)
3. Remove the backrest latch upper bolts.
  Torque: 59 lb.ft (80 Nm)
