Front Center Seat Backrest Latch: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Remove the front center seat. Refer to: Front Center Seat .

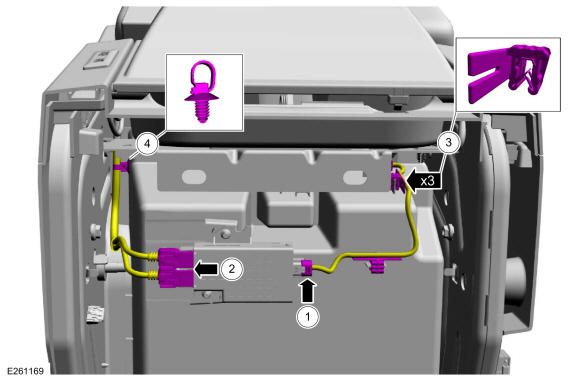

If equipped with rear cup holder. Disconnect the USB module electrical connectors.
1. Disconnect the electrical connector.
2. Disconnect the electrical connectors.
3. Detach the retainers and position the wiring harness aside.
4. Detach the retainer and position the wiring harness aside.
Courtesy of FORD MOTOR COMPANY

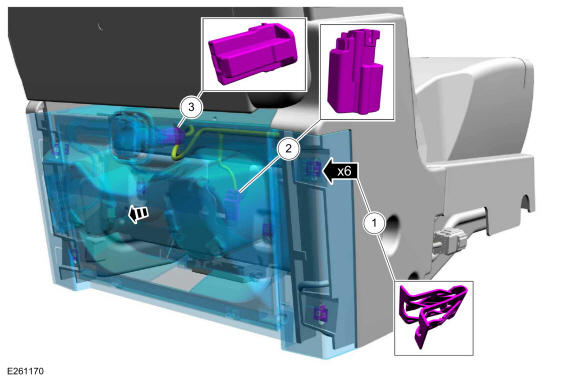

If equipped with rear cup holder. Remove the rear cup holder assembly.
1. Release the retainers.
2. Disconnect the PATS center antenna electrical connector.
3. Disconnect the auxiliary power point electrical connector.
Courtesy of FORD MOTOR COMPANY
Position the seat cushion up.

Courtesy of FORD MOTOR COMPANY
Remove the cup holder.

Courtesy of FORD MOTOR COMPANY
Remove screws and the seat storage tray.

Courtesy of FORD MOTOR COMPANY
Position the seat cushion down.

Courtesy of FORD MOTOR COMPANY
Release the seat latch and fold the seat backrest down.

Courtesy of FORD MOTOR COMPANY

Regular Cab
Remove the backrest latch cover.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clip and remove the RH side shield.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clips and remove the LH shield.

Courtesy of FORD MOTOR COMPANY
Release the seat latch and raise the seat backrest up.

Courtesy of FORD MOTOR COMPANY

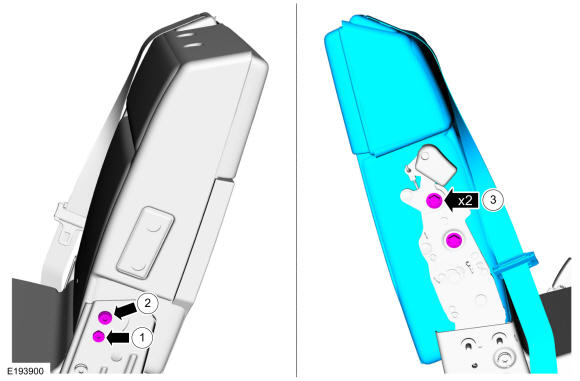

Remove the backrest.
1. Remove the stop bolt.
  Torque: 22 lb.ft (30 Nm)
2. Remove the pivot bolt.
  Torque: 33 lb.ft (45 Nm)
3. Remove the backrest latch upper bolts.
  Torque: 33 lb.ft (45 Nm)
Courtesy of FORD MOTOR COMPANY

SuperCab and SuperCrew

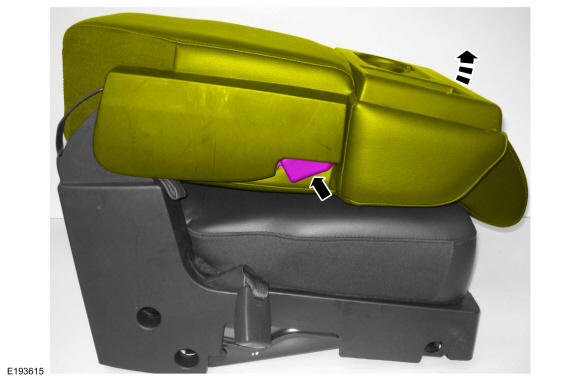

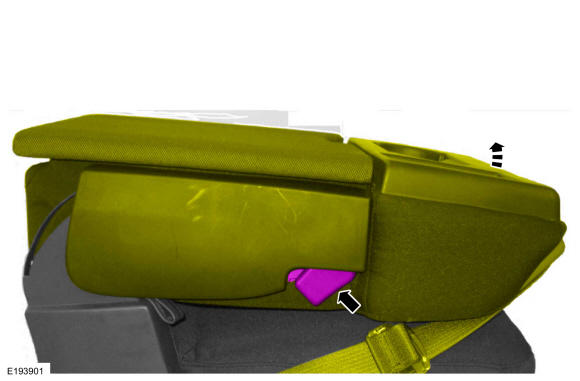

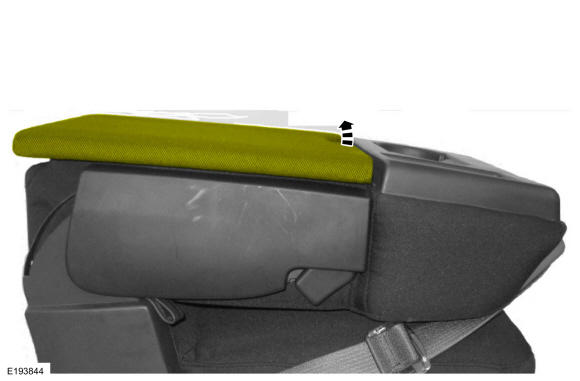

Position the armrest storage compartment lid up.

Courtesy of FORD MOTOR COMPANY

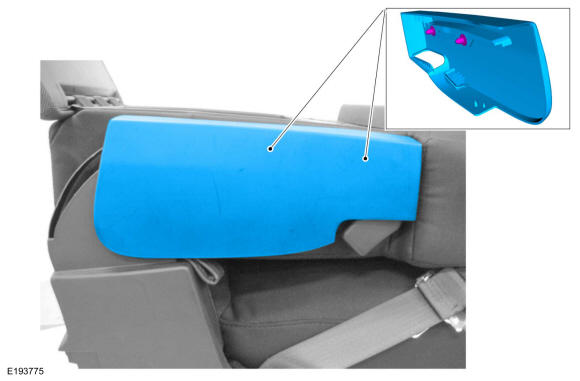

Remove the backrest latch cover.

Courtesy of FORD MOTOR COMPANY

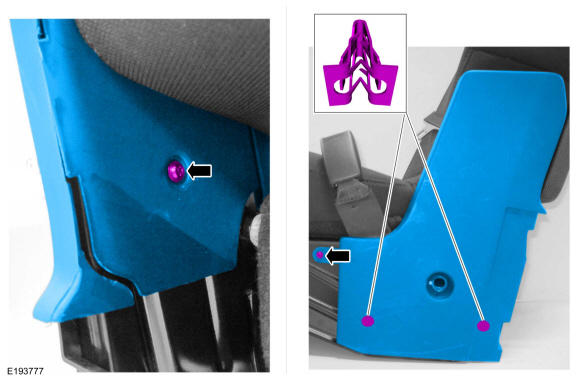

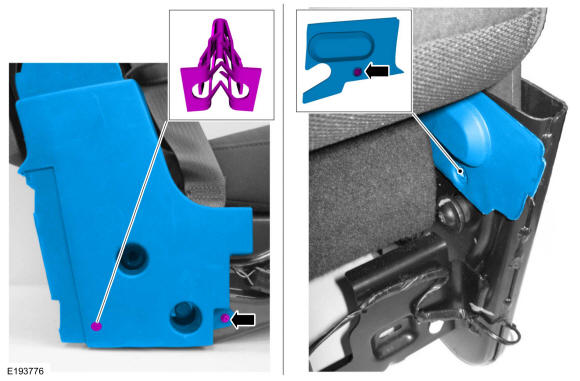

Remove the screws, release the retaining clip and remove the RH side shields.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clips and remove the LH side shield.

Courtesy of FORD MOTOR COMPANY
Release the seat latch and raise the seat backrest up.

Courtesy of FORD MOTOR COMPANY

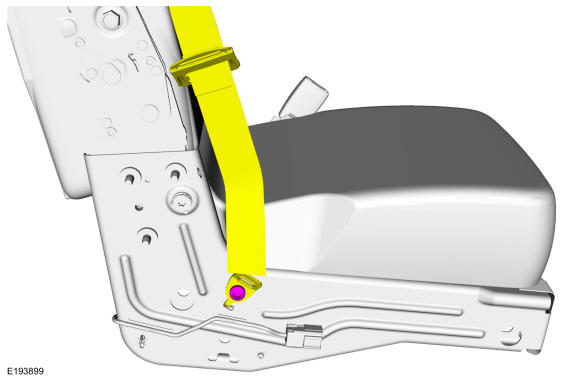

Remove the safety belt anchor bolt.
Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY

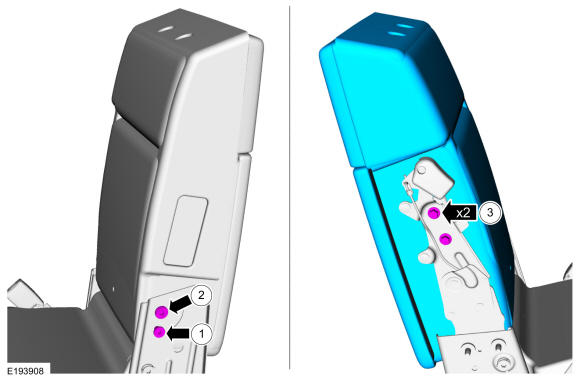

Remove the backrest.
1. Remove the stop bolt.
  Torque: 22 lb.ft (30 Nm)
2. Remove the pivot bolt.
  Torque: 33 lb.ft (45 Nm)
3. Remove the backrest latch upper bolts.
  Torque: 59 lb.ft (80 Nm)
Courtesy of FORD MOTOR COMPANY

All vehicles

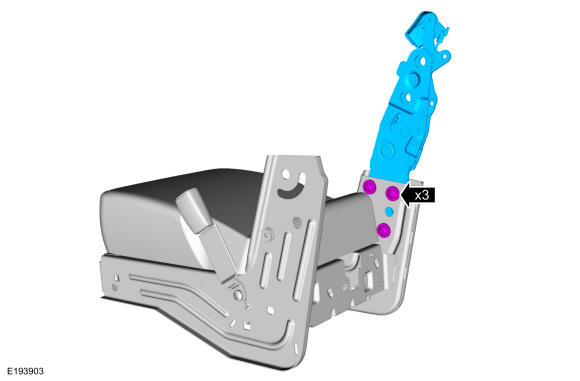

Remove the bolts and the backrest latch.
Torque: 35 lb.ft (47 Nm)

GFD466596

Courtesy of FORD MOTOR COMPANY
