Front Center Seat Backrest Cover - Regular Cab: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All seats

Remove the front center seat. Refer to: Front Center Seat .
Position the seat cushion up.

Courtesy of FORD MOTOR COMPANY
Remove the cup holder.

Courtesy of FORD MOTOR COMPANY
Remove screws and the seat storage tray.

Courtesy of FORD MOTOR COMPANY
Position the seat cushion down.

Courtesy of FORD MOTOR COMPANY
Release the seat latch and fold the seat backrest down.

Courtesy of FORD MOTOR COMPANY
Remove the backrest latch cover.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clip and remove the RH side shield.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the retaining clips and remove the LH side shield.

Courtesy of FORD MOTOR COMPANY
Release the seat latch and raise the seat backrest up.

Courtesy of FORD MOTOR COMPANY
Remove the head restraint guide sleeves. Refer to: Front Head Restraint Guide Sleeve .
Remove the backrest.
1. Remove the stop bolt.
  Torque: 22 lb.ft (30 Nm)
2. Remove the pivot bolt.
  Torque: 33 lb.ft (45 Nm)
3. Remove the backrest latch upper bolts.
  Torque: 33 lb.ft (45 Nm)
Courtesy of FORD MOTOR COMPANY

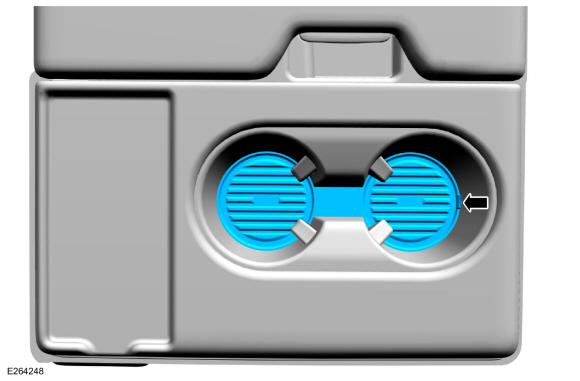

Remove the cup holder insert.

Courtesy of FORD MOTOR COMPANY

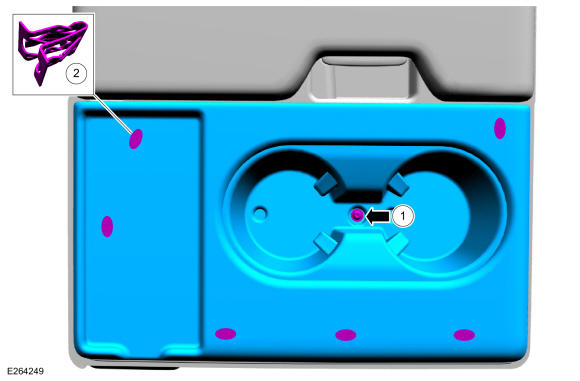

Remove the cup holder.
1. Remove the screw.
2. Release the retaining clips.
Courtesy of FORD MOTOR COMPANY

Seats with storage tray
Remove the trim cover.

Courtesy of FORD MOTOR COMPANY

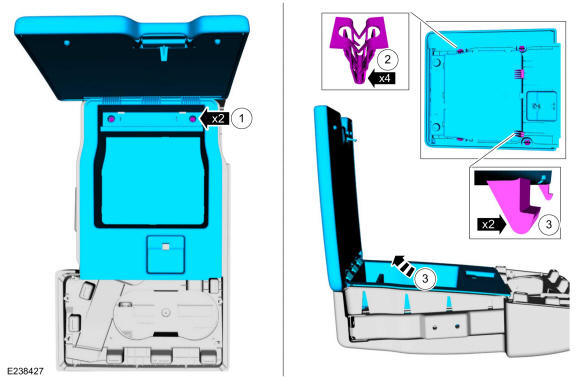

Remove the armrest storage tray.
1. Remove the screws.
2. Release the retainers.
3. Remove the storage tray.
Courtesy of FORD MOTOR COMPANY

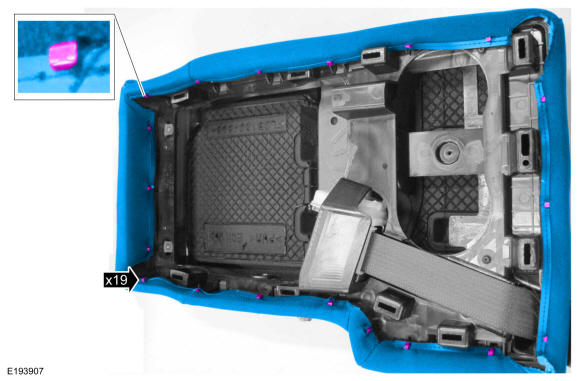

NOTE: Seat backrest with seatbelt retractor shown, seat backrest without seatbelt retractor similar.

Release the cover from the J-hooks and remove the backrest cover.

Courtesy of FORD MOTOR COMPANY

Seats without storage tray

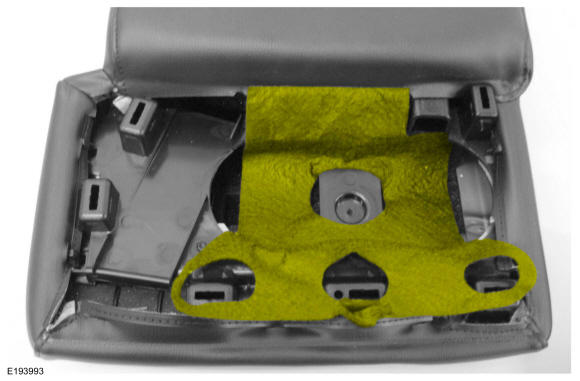

Position the backrest cover flap aside.

Courtesy of FORD MOTOR COMPANY

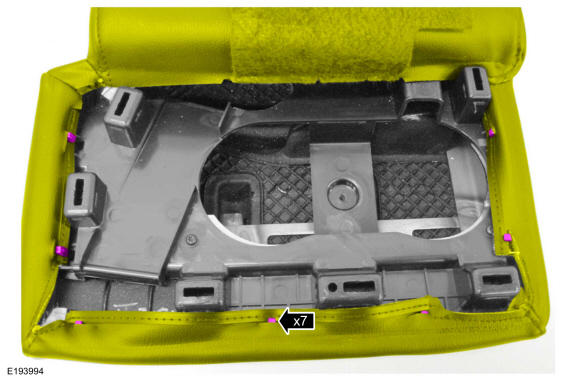

Release the cover from the J-hooks and position the backrest cover aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strip or the hook-and-loop strip may be torn from the seat backrest foam pad.

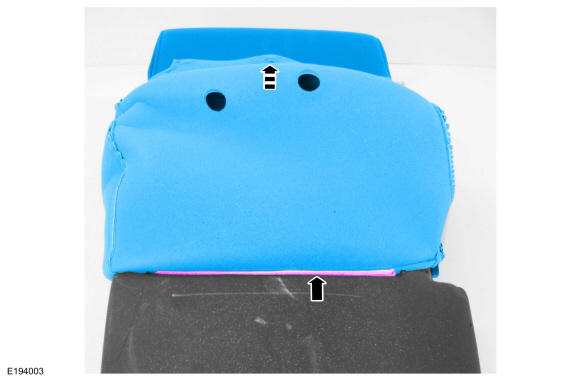

Release the hook-and-loop strip and remove the backrest cover.

Courtesy of FORD MOTOR COMPANY
