Driver Front Seat Module (DSM): Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current DSM installed. If the current DSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

Vehicles with climate control seats
NOTE: This step is only necessary when installing a new DSM.

NOTE: The SCME is integral to the DSM. PMI is required on both the DSM and the SCME when a new DSM is installed.

NOTE: The PMI process must begin with the current SCME installed. If the current SCME does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCME following the on-screen instructions.

All vehicles

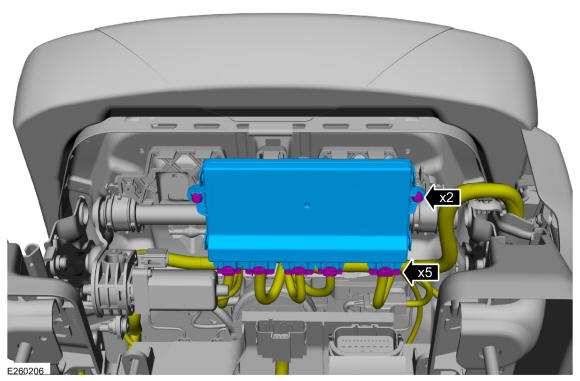

Remove the screws, disconnect the electrical connectors and remove the DSM.
Torque: 44 lb.in (5 Nm)
