Mid-Level IPC
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

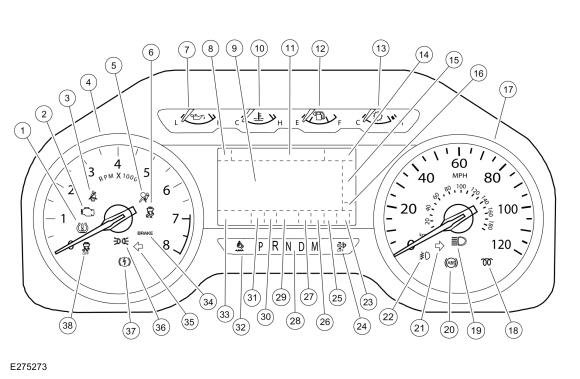

The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
NOTE:
The base vehicle IPC is shown. The Raptor IPC is similar with variations in the gauge details and some additional indicator/ RTT indicators and/or locations as noted below.
| Item | Description |
|---|---|
| 1 | TPMS indicator |
| 2 | MIL |
| 3 | Seatbelt warning indicator |
| 4 | Tachometer |
| 5 | Airbag warning indicator |
| 6 | Stability-traction control indicator (sliding car icon) |
| 7 | Engine oil pressure gauge |
| 8 | Main menu navigation icon |
| 9 | Main menu display area |
| 10 | Engine temperature gauge |
| 11 | Sub-menu display area |
| 12 | Fuel gauge |
| 13 | Transmission temperature gauge |
| 14 | Compass |
| 15 | Manual shift mode, progressive range select and SelectShift® display |
| 16 | Cruise control set speed display |
| 17 | Speedometer |
| 18 | Wait to start indicator (Diesel only) |
| 19 | High beam indicator |
| 20 | ABS indicator |
| 21 | RH turn indicator |
| 22 | Front fog lamp indicator (except Raptor) |
| 23 | Cruise control RTT |
| 24 | Diesel particulate filter regen indicator (Diesel only) |
| 25 | 4WD (2H, 4H, 4L, 4H and 4A) RTT |
| 26 | Auto stop/start RTT |
| 27 | ELD RTT |
| 28 | PRNDL display |
| 29 | Rotating RTT display area BLIS disabled Charging system Door ajar warning Engine over-temperature warning Hill descent control Low fuel Low engine oil pressure warning Low washer fluid level Powertrain malfunction (wrench) Water in fuel (Diesel only) |
| 30 | Steering mode RTT (Raptor) Rotating RTT display area (base vehicle) BLIS disabled Charging system Door ajar warning Engine over-temperature warning Hill descent control Low fuel Low engine oil pressure warning Powertrain malfunction (wrench) |
| 31 | Tow haul or sport mode RTT (base vehicle) Tow haul or drive mode RTT (Raptor) |
| 32 | Diesel exhaust fluid level indicator (Diesel only) |
| 33 | Odometer |
| 34 | Brake warning indicator (text, North America [shown], symbol, non-North America) |
| 35 | LH turn indicator |
| 36 | Lights on indicator |
| 37 | Electronic park brake indicator |
| 38 | Stability-traction control disabled indicator (sliding car OFF icon) |
