High-Level IPC
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The base vehicle IPC is shown. The Raptor IPC is similar with variations in the gauge details and some additional indicator/ RTT indicators and/or locations as noted below.
NOTE:

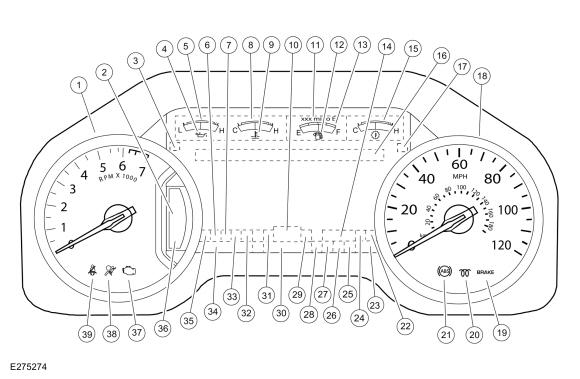

The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Progressive range select and SelectShift® display |
| 3 | LH turn indicator |
| 4 | Low engine oil pressure warning RTT |
| 5 | Virtual engine oil pressure gauge |
| 6 | Auto stop/start RTT |
| 7 | Stability-traction control RTT (sliding car icon) |
| 8 | Virtual engine temperature gauge |
| 9 | Engine over-temperature warning RTT |
| 10 | Cruise control and set speed display (non-ACC) Lane keeping aid and ACC display |
| 11 | DTE display |
| 12 | Low fuel RTT |
| 13 | Virtual fuel gauge |
| 14 | Rotating RTT display area Blind Spot Information System (BLIS®) disabled Charging system Diesel exhaust fluid level (Diesel only) Door ajar warning Hill descent Low washer fluid level Powertrain malfunction (wrench) Water in fuel (Diesel only) |
| 15 | Configurable virtual gauge Transmission temperature gauge Turbo boost gauge |
| 16 | Main menu tabbed navigation |
| 17 | RH turn indicator |
| 18 | Speedometer |
| 19 | Brake warning indicator (text, North America [shown], symbol, non-North America) |
| 20 | Wait to start indicator (Diesel only) |
| 21 | ABS indicator |
| 22 | Front fog lamp RTT (Vehicles built before March, 2018) TPMS RTT (Vehicles built March, 2018 or later) |
| 23 | Compass |
| 24 | Diesel particulate filter regen (Diesel only) ELD RTT |
| 25 | Lights on RTT |
| 26 | Auto high beam RTT |
| 27 | Electronic park brake RTT |
| 28 | Drive mode RTT (Raptor) Tow haul RTT (base vehicle with 6R80 transmission and Raptor) Sport mode RTT (except Raptor with 6R80 transmission) |
| 29 | ACC set speed |
| 30 | PRNDL display area |
| 31 | ACC RTT |
| 32 | High beam RTT (Vehicles built March, 2018 or later) TPMS RTT (Vehicles built before March, 2018) |
| 33 | Stability-traction control disabled RTT (sliding car OFF icon) |
| 34 | Odometer |
| 35 | 4WD (2H, 4L, 4H and 4A) RTT |
| 36 | Tow haul RTT (except Raptor with 6R80 transmission) Sport mode RTT (except Raptor with 6R80 transmission) |
| 37 | MIL |
| 38 | Airbag warning indicator |
