Base IPC
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

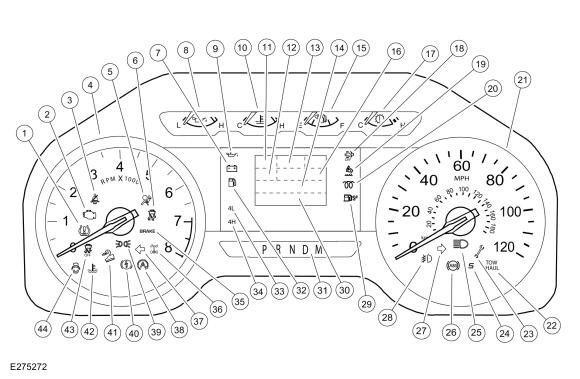

The illustration shows the basic display elements. The elements displayed and the layout of the LCD display changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | TPMS indicator |
| 2 | MIL |
| 3 | Seatbelt warning indicator |
| 4 | Tachometer |
| 5 | Airbag warning indicator |
| 6 | Stability-traction control indicator (sliding car icon) |
| 7 | Charging system warning indicator |
| 8 | Engine oil pressure gauge |
| 9 | Low engine oil pressure warning indicator |
| 10 | Engine temperature gauge |
| 11 | SelectShift® display |
| 12 | Cruise control RTT |
| 13 | Compass |
| 14 | Trip computer display area (may also use the cruise control display area as needed) |
| 15 | Fuel gauge |
| 16 | Cruise control and set speed display area (may also use the trip computer and odometer display areas as needed) |
| 17 | Transmission temperature gauge |
| 18 | Diesel particulate filter regen indicator (Diesel only) |
| 19 | Diesel exhaust fluid level indicator (Diesel only) |
| 20 | Wait to start indicator (Diesel only) |
| 21 | Speedometer |
| 22 | Tow haul indicator |
| 23 | Powertrain malfunction (wrench) indicator |
| 24 | Sport mode indicator |
| 25 | High beam indicator |
| 26 | ABS indicator |
| 27 | RH turn indicator |
| 28 | Front fog lamp indicator |
| 29 | Water in fuel indicator (Diesel only) |
| 30 | Odometer display area |
| 31 | PRNDL display |
| 32 | Low fuel indicator |
| 33 | 4x4 low indicator |
| 34 | 4x4 high indicator |
| 35 | Brake warning indicator (text, North America [shown], symbol, non-North America) |
| 36 | ELD indicator |
| 37 | LH turn indicator |
| 38 | Auto stop/start indicator |
| 39 | Lights on indicator |
| 40 | Electronic park brake indicator |
| 41 | Hill descent control indicator |
| 42 | Engine over-temperature warning indicator |
| 43 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 44 | Door ajar warning indicator |
