Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Lubricate O-ring with clean engine oil.

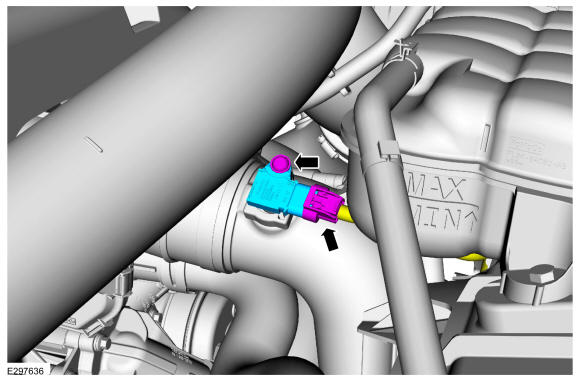

Disconnect the electrical connector, remove the retainers and the turbocharger boost pressure (TCBP) and charger air cooler temperature (CACT) sensor.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
