Manifold Absolute Pressure and Temperature (MAPT) Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine appearance cover.
    GFD463278Courtesy of FORD MOTOR COMPANY

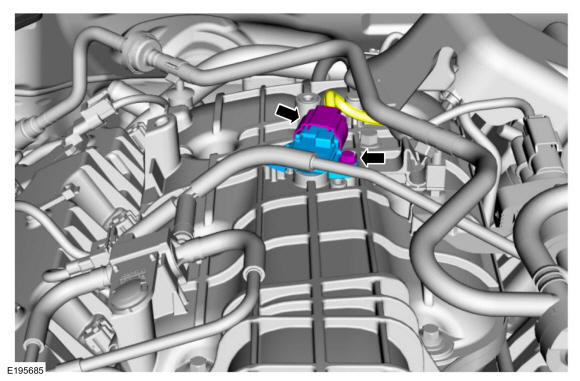

    • Disconnect the MAPT electrical connector.

    • Remove the bolt and the MAPT sensor

GFD463279Courtesy of FORD MOTOR COMPANY
