Intake Air Temperature (IAT) Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

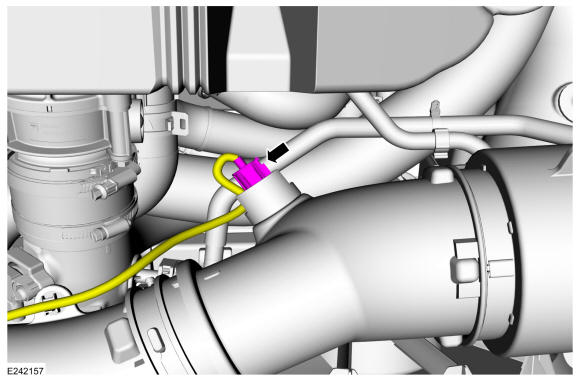

- Disconnect the IAT sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

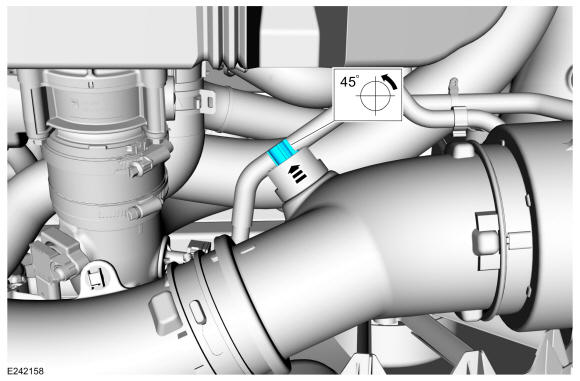

- Remove the IAT sensor.
 Courtesy of FORD MOTOR COMPANY
|
