Fuel Rail Pressure and Temperature Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Remove the intake manifold. Refer to: Intake Manifold .
-

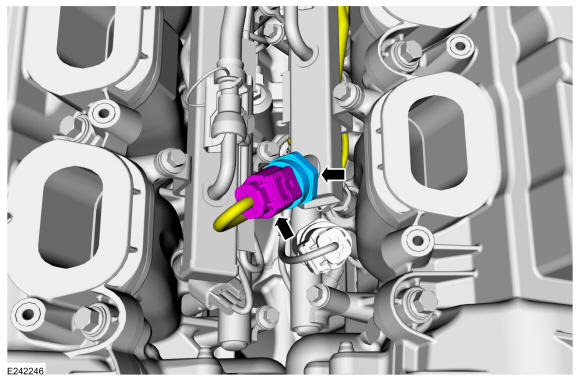

- Disconnect the FRP temperature sensor electrical connector.
- Remove the FRP temperature sensor.
Torque: 177 lb.in (20 Nm)
