Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Remove the intake manifold. Refer to: Intake Manifold .
-

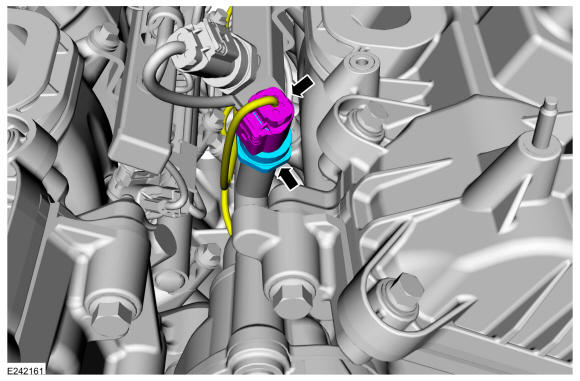

- Disconnect the FRP sensor electrical connector.
- Remove the FRP sensor.
Torque: 24 lb.ft (33 Nm)
