Cylinder Head Temperature (CHT) Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the RH fender splash shield. Refer to: Fender Splash Shield .

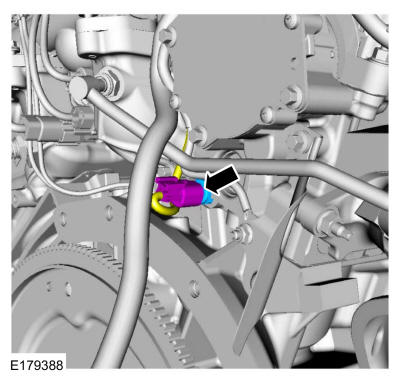

- Disconnect the CHT sensor electrical connector
-
NOTE: Do not reuse the CHT sensor, install a new sensor.

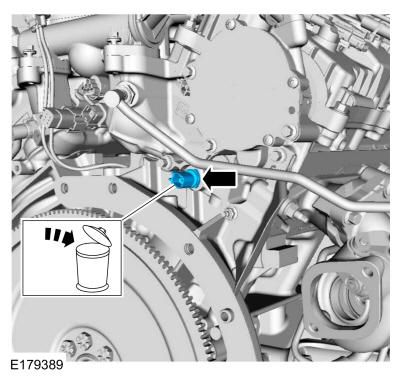

Remove and discard the CHT sensor.
Torque: 89 lb.in (10 Nm)
