Electronic Engine Controls- Front
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

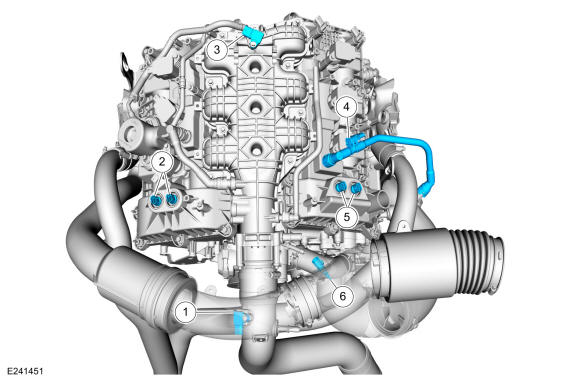

| Item | Description |
|---|---|
| 1 | Turbocharger Boost Pressure (TCBP) Charge Air Cooler (CAC) Temperature sensor |
| 2 | Right hand VCT oil control solenoids |
| 3 | MAPT sensor |
| 4 | Crankcase Pressure Sensor |
| 5 | Left hand VCT oil control solenoids |
| 6 | IAT sensor |
