Brake Vacuum Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

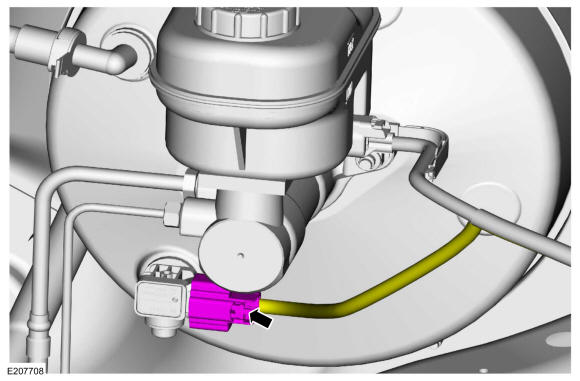

  1. Disconnect the vacuum sensor electrical connector.
    GFD458559Courtesy of FORD MOTOR COMPANY

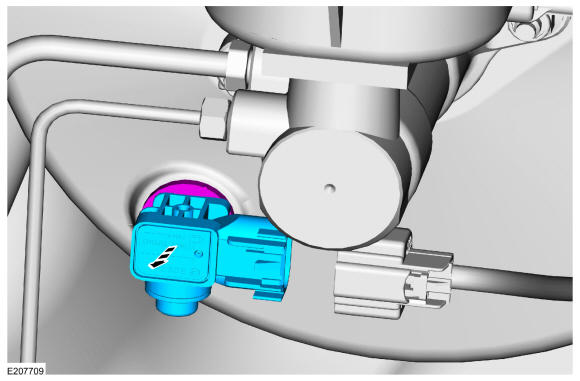

  2. Remove the vacuum sensor.
GFD458560Courtesy of FORD MOTOR COMPANY
