Brake Vacuum Pump - 2.7L EcoBoost (238kW 324PS): Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the 2 nuts and the engine appearance cover.
- Release the couplings and disconnect the 2 vacuum tubes.
- Remove the LH front wheel and tire. Refer to: Wheel and Tire .
- Remove the LH fender splash shield. Refer to: Fender Splash Shield .
- Detach the wiring retainer.

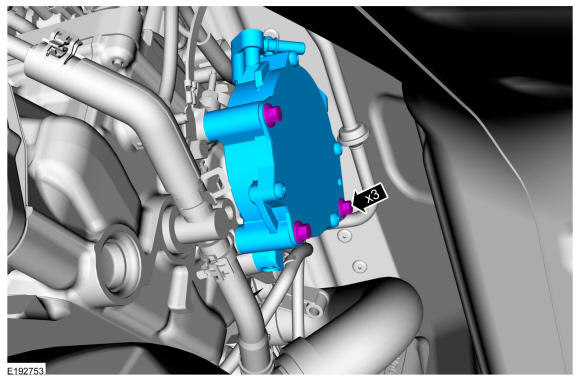

- Remove the 3 bolts and the brake vacuum pump.
