Brake Pedal Control Switch: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

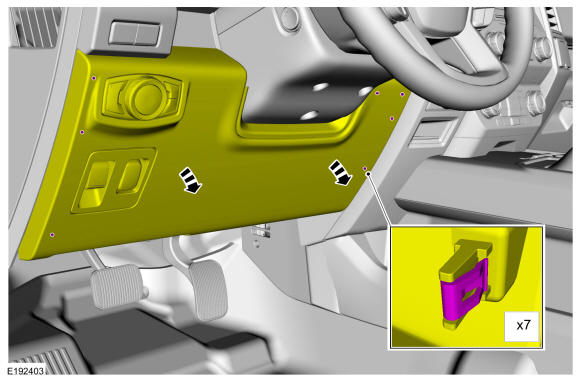

  1. Pull outward on the steering column opening cover detaching the 7 clips and allow the cover to hinge downward.
    GFD458531Courtesy of FORD MOTOR COMPANY

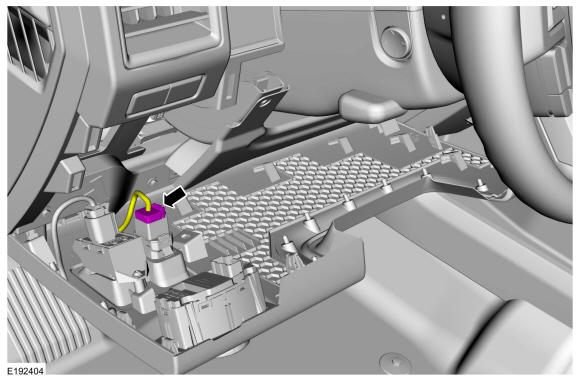

  2. Disconnect the adjustable pedal switch electrical connector.
    GFD458532Courtesy of FORD MOTOR COMPANY

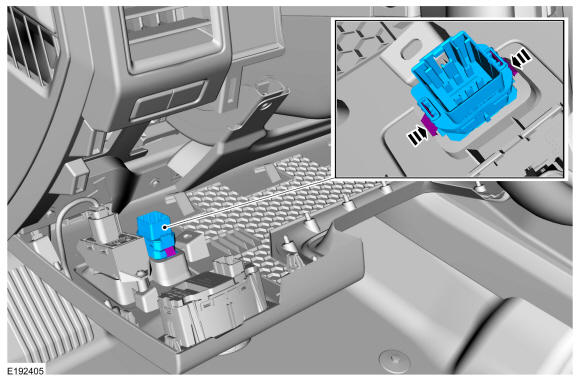

  3. Press inward on the 2 clips and remove the adjustable pedal switch.
GFD458533Courtesy of FORD MOTOR COMPANY
