Outer Constant Velocity (CV) Joint Boot: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inner CV joint boot. Refer to: Inner Constant Velocity (CV) Joint Boot .
    1. Remove and discard the CV joint boot clamps.
    2. Remove the CV joint boot.

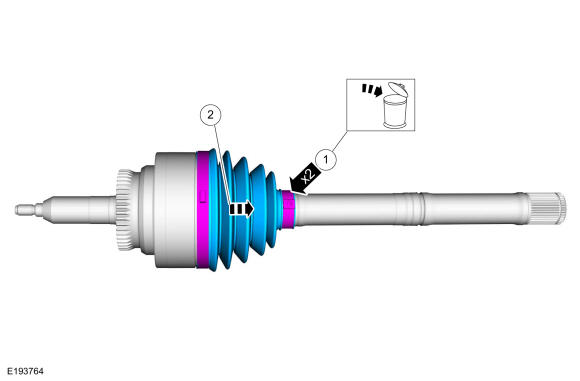

GFD458412Courtesy of FORD MOTOR COMPANY
