Inner Constant Velocity (CV) Joint Boot: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: CV cage is shown assembled.

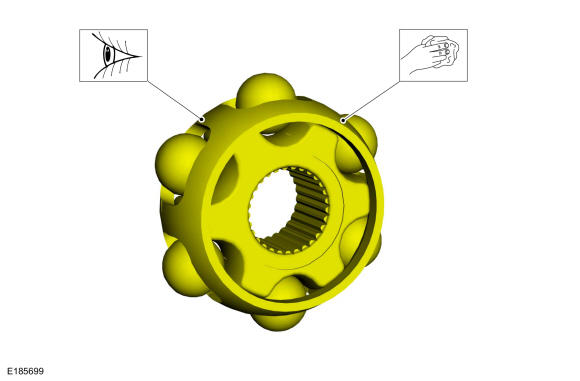

Clean and inspect the CV joint cage.

Courtesy of FORD MOTOR COMPANY

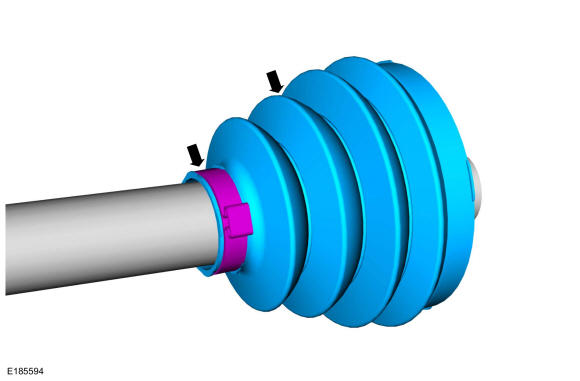

Using boot clamp pliers, install the new CV joint boot and the new small CV joint boot clamp. Use the General Equipment: Boot Clamp Pliers

Courtesy of FORD MOTOR COMPANY
NOTE: The CV joint cage is a snug fit and may need to tapped on with a soft face mallet.

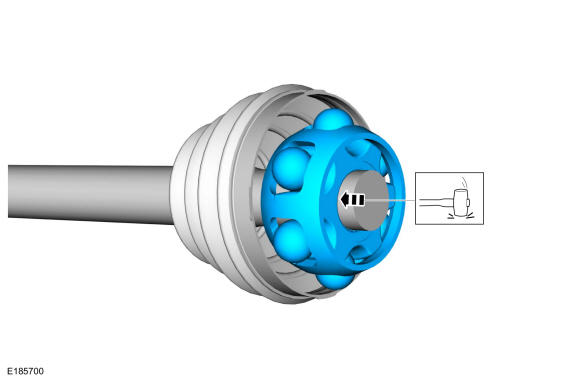

Using a soft face mallet, install the CV joint cage. Use the General Equipment: Rubber Mallet

Courtesy of FORD MOTOR COMPANY

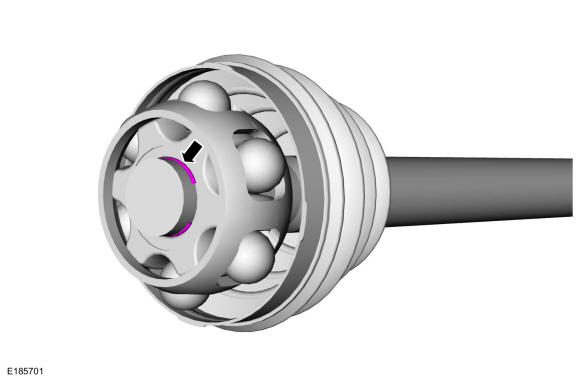

Install the new CV joint cage circlip.

Courtesy of FORD MOTOR COMPANY

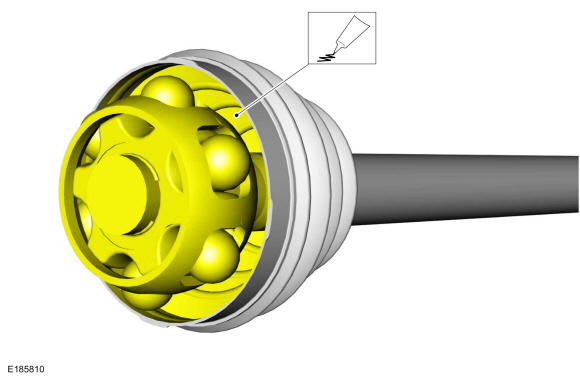

Install the grease sachet evenly in the CV joint boot and housing.
Material

: Motorcraft® Constant Velocity Joint Grease / XG-5 (WSS-M1C258-A1)

Courtesy of FORD MOTOR COMPANY
NOTE: When installing the CV joint housing, insert a small flat blade screwdriver under the CV joint boot seat to allow air to escape.

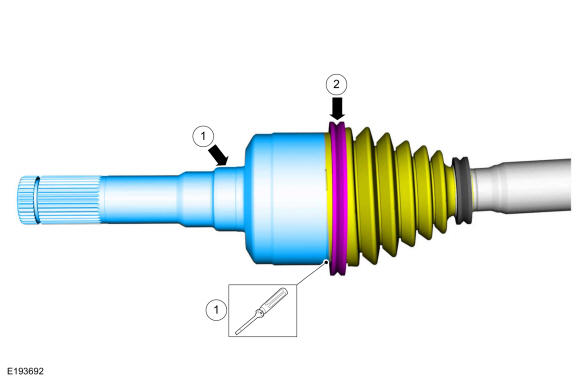

Install the inner CV housing and the new inner CV housing retaining ring.
1. Using a flat blade screw driver to allow air to escape, install the CV joint housing. Use the General Equipment: Flat Headed Screw Driver
2. Using boot clamp pliers, install the new large CV joint boot clamp. Use the General Equipment: Boot Clamp Pliers
Courtesy of FORD MOTOR COMPANY
Install the halfshaft. Refer to: Halfshaft .
