Drive Pinion Flange and Seal: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front brake pads. Refer to: Brake Pads .
  2. Remove the front driveshaft. Refer to: Front Driveshaft .

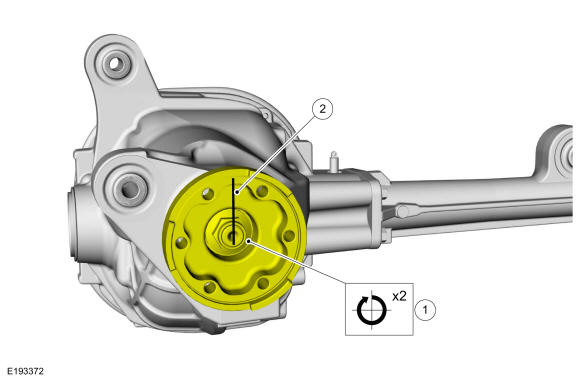

  3. NOTE: Rotational torque of the drive pinion flange must be measured and recorded using a Nm (lb-in) torque wrench for correct pinion bearing preload when reassembled. This will be the torque-to-turn measurement.

    1. Using a dial type torque wrench, measure and record the rotational torque of the drive pinion.
    2. Index-mark the pinion flange and the drive pinion stem.

    GFD458353Courtesy of FORD MOTOR COMPANY

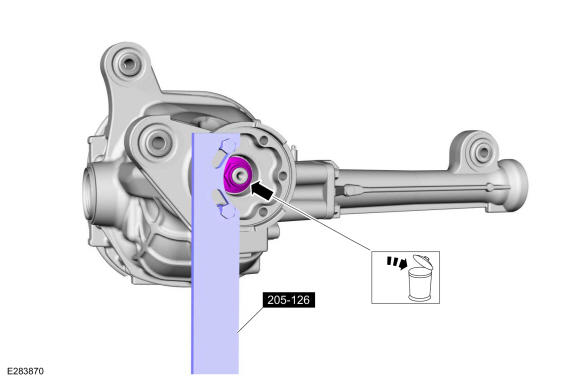

  4. Using the special tool, remove and discard the pinion nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
    GFD458354Courtesy of FORD MOTOR COMPANY

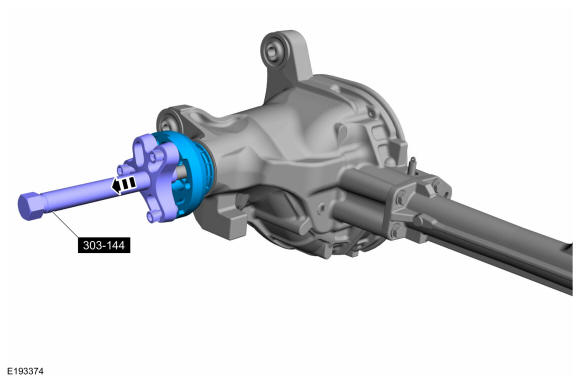

  5. Using the special tool, remove the pinion flange. Use Special Service Tool: 303-144 (T79T-6316-A) Remover, Crankshaft Harmonic Balancer.
    GFD458355Courtesy of FORD MOTOR COMPANY

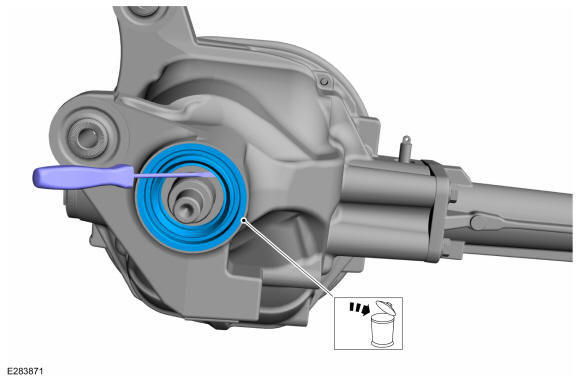

  6. Using the general equipment, remove and discard the drive pinion seal. Use the General Equipment: Flat Headed Screw Driver
    GFD458356Courtesy of FORD MOTOR COMPANY

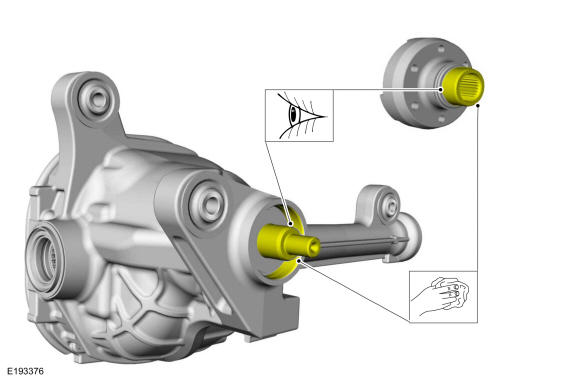

  7. Clean and inspect the pinion flange mating surfaces and pinion seal surface.
GFD458357Courtesy of FORD MOTOR COMPANY
