Removal And Installation: Hood: Removal
WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

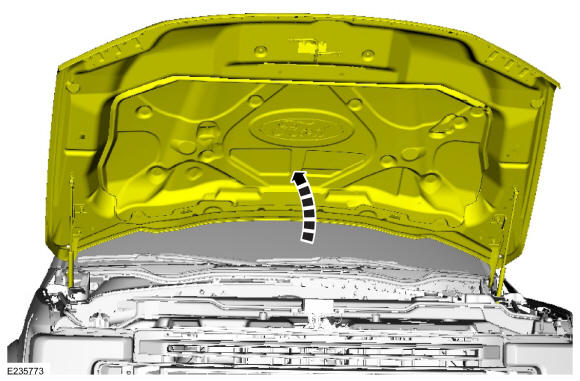

- Open the hood.

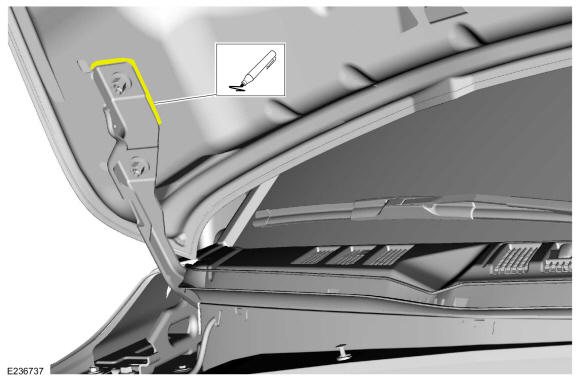

- On both sides. Index-mark the hood hinge location to aid in hood installation.

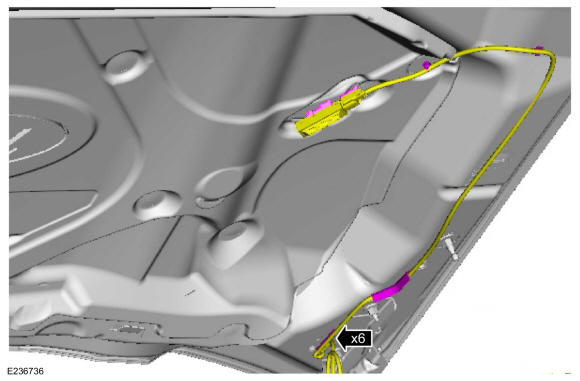

- Release the retainers and position the wiring harness aside.
-
NOTE: Support the hood before removing the strut. Failure to follow this direction may result in damage to the components.

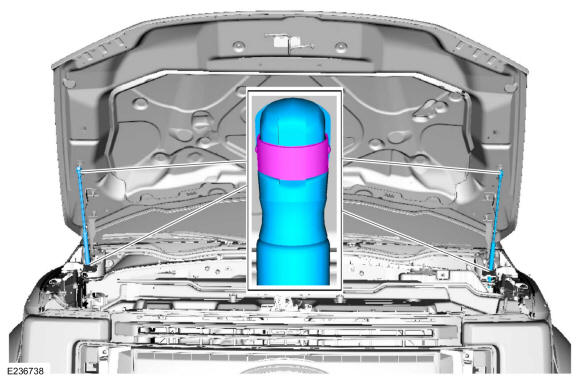

Release the clips and remove the struts.
-
NOTE: An assistant is necessary for the removal of the hood.

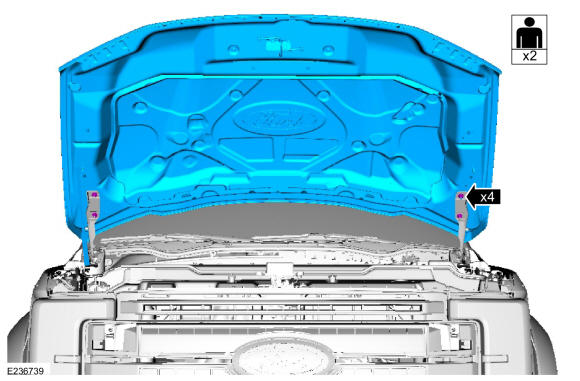

Remove the nuts and the hood.
Torque: 22 lb.ft (30 Nm)
-
NOTE: This step is only necessary when installing a new component.

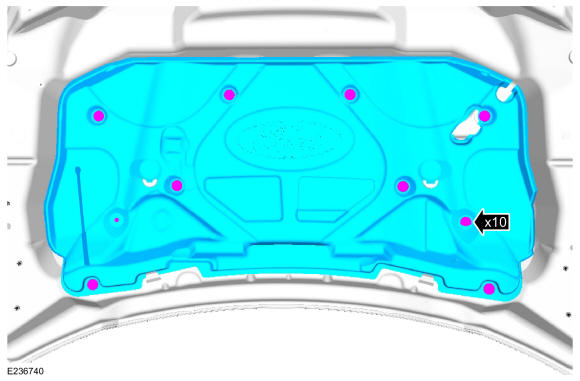

Remove the pin-type retainers and hood insulation.
-
NOTE: This step is only necessary when installing a new component.

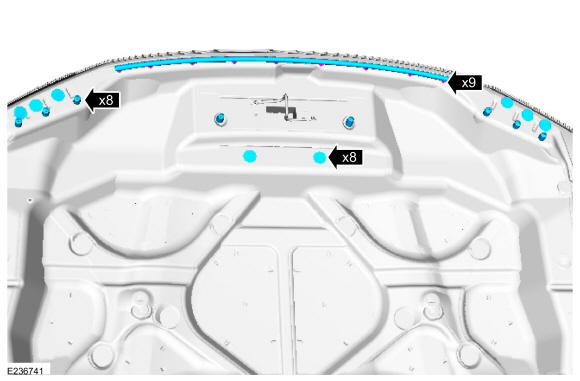

- Remove the mylar tape.
- Remove the rubber bumpers.
- Remove the pin-type retainers and the hood pad.
-
NOTE: This step is only necessary when installing a new component.

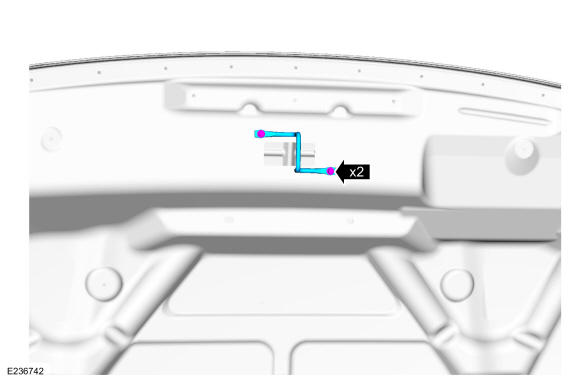

Remove the bolts and the striker.
Torque: 106 lb.in (12 Nm)
