Fender Splash Shield: Removal

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels . Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels .
  2. Remove the wheel and tire. Refer to: Front Fender Moulding - F-450/F-550 or FRONT FENDER MOULDING - F-250 F-350 .

    For F250/350

  3. NOTE: LH shown, RH similar.

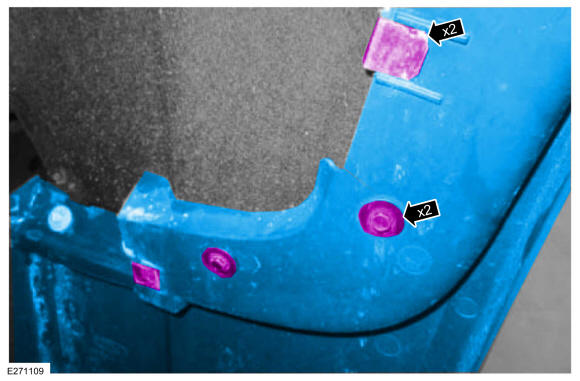

    If equipped with mud flaps. Remove the mud flaps.

    GFD206153Courtesy of FORD MOTOR COMPANY

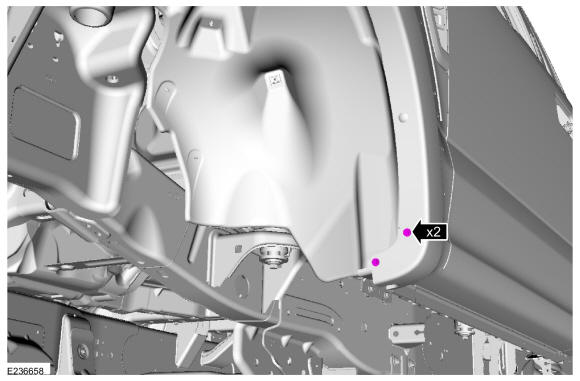

  4. Remove the bolts.
    GFD206154Courtesy of FORD MOTOR COMPANY

    All vehicles

  5. NOTE: LH shown, RH similar

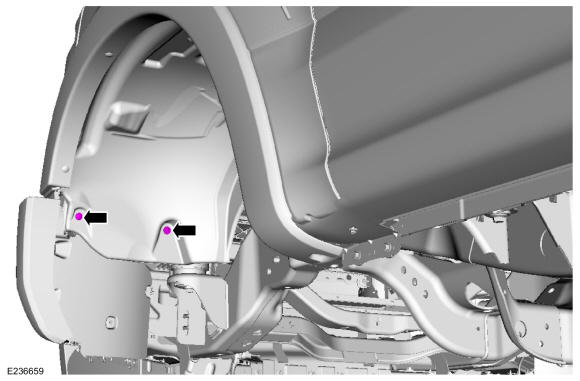

    Remove the bolt and the pin-type retainer.

    GFD206155Courtesy of FORD MOTOR COMPANY
  6. NOTE: LH shown, RH similar

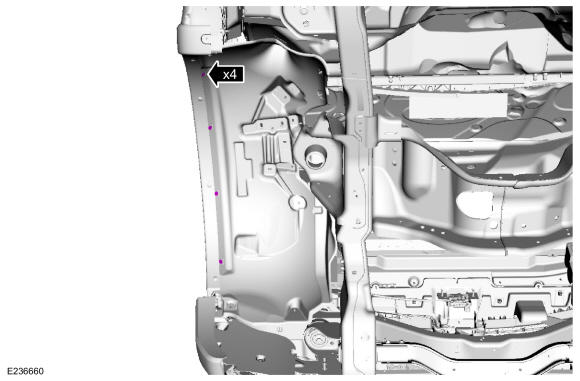

    Remove the bolts.

    GFD206156Courtesy of FORD MOTOR COMPANY

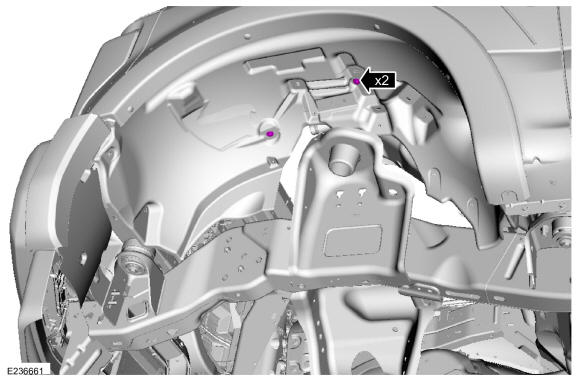

  7. LH side. Remove the bolts.
    GFD206157Courtesy of FORD MOTOR COMPANY
  8. NOTE: LH shown, RH similar

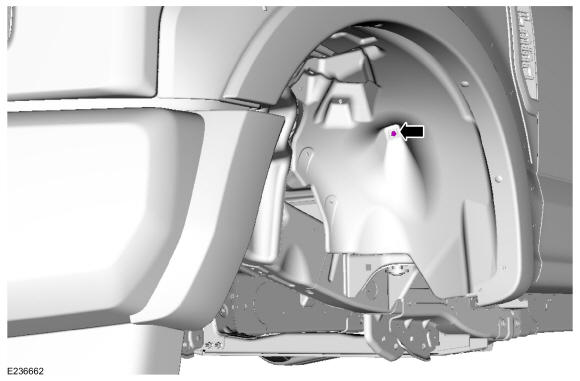

    Remove the nut.

    GFD206158Courtesy of FORD MOTOR COMPANY

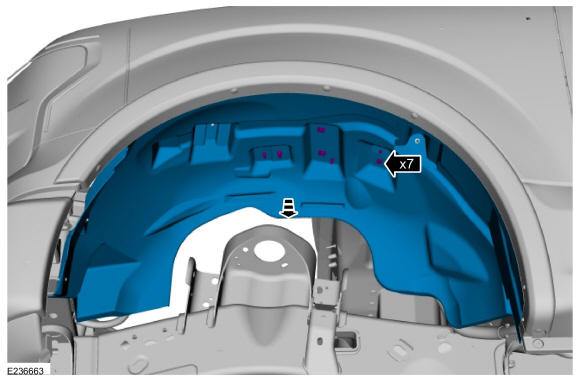

  9. Release the wiring harness retainers and remove the LH fender splash shield.
    GFD206159Courtesy of FORD MOTOR COMPANY

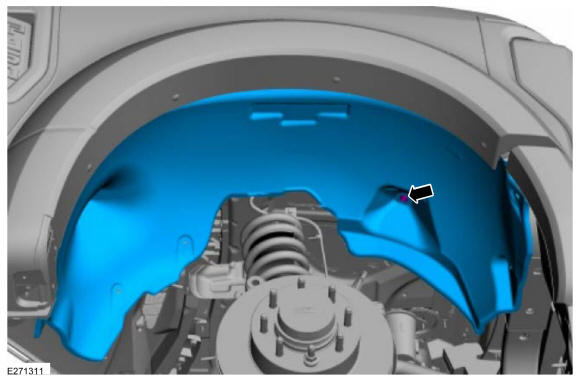

  10. Remove the RH fender splash shield.
GFD206160Courtesy of FORD MOTOR COMPANY
