Cowl Panel Grille: Removal

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper pivot arm. Refer to: Windshield Wiper Pivot Arm .

    RH side and LH side

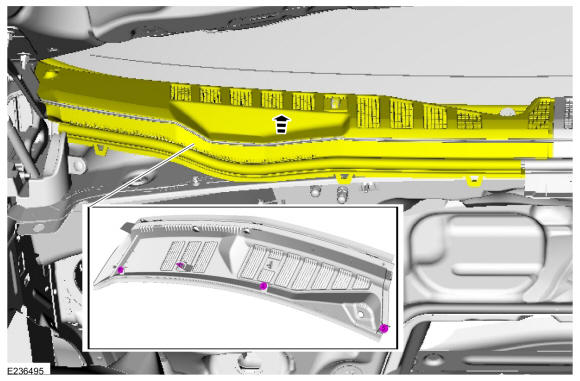

  2. Lift the cowl trim panel upward to release the retainers.
    GFD206136Courtesy of FORD MOTOR COMPANY

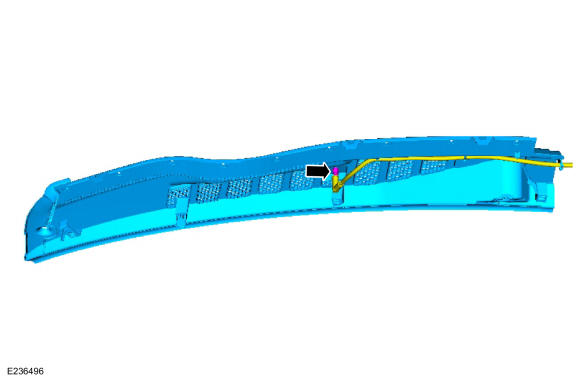

  3. Disconnect the windshield washer tube and remove the cowl panel grille.
    GFD206137Courtesy of FORD MOTOR COMPANY

    LH side

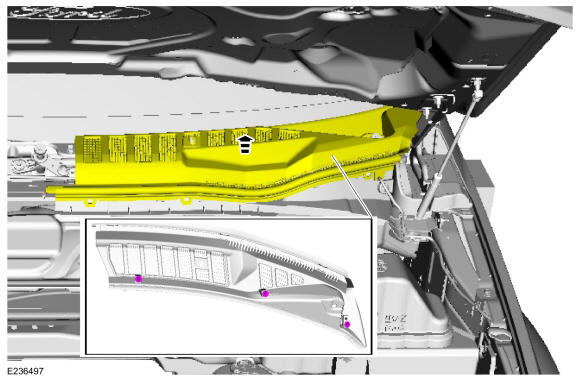

  4. Lift the cowl trim panel upward to release the retainers.
    GFD206138Courtesy of FORD MOTOR COMPANY

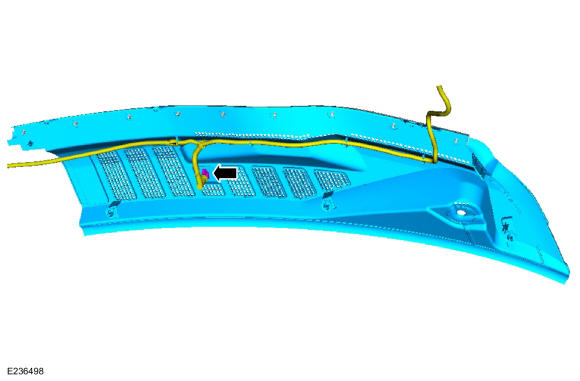

  5. Disconnect the windshield washer tube and remove the cowl panel grille.
GFD206139Courtesy of FORD MOTOR COMPANY
