Piston Diameter - 5.0L 32V Ti-VCT
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Check
-

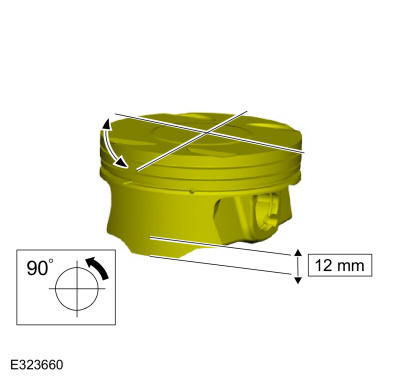

- Measure the piston diameter 90 degrees from the piston pin and piston diameter (DN) height up from the bottom of the piston at the point indicated.
- Refer to specifications for the piston diameter (DN). Refer to: Specifications .
