Rear Brake Outer Flexible Hose: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Right hand (RH) and left hand (LH) outer brake hoses

Remove the wheel and tire. Refer to: Wheel and Tire .

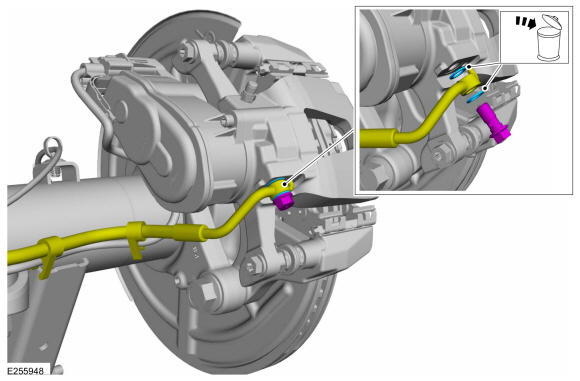

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

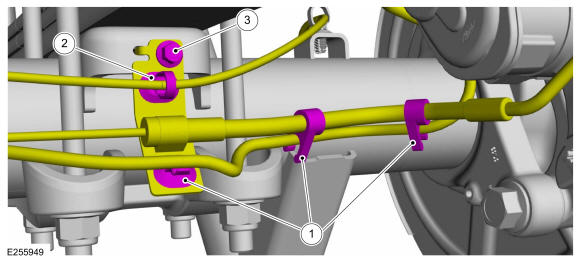

1. Detach the EPB wiring retainers and unclip the brake hose.
2. Detach the wheel speed sensor wiring retainer.
3. Remove the outer brake hose bracket bolt.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

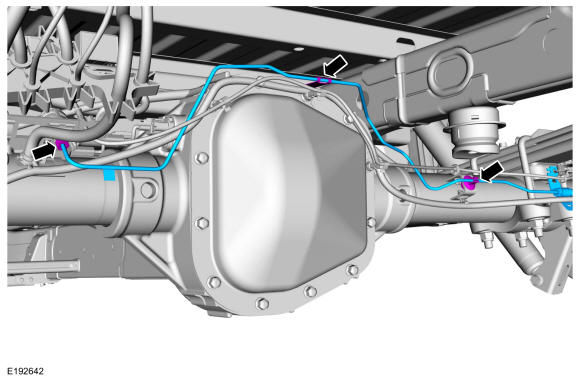

Right hand (RH) outer brake hose
Detach the brake tube from the 2 axle clips, disconnect the brake tube fitting and remove the RH rear outer brake flexible hose/tube assembly.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

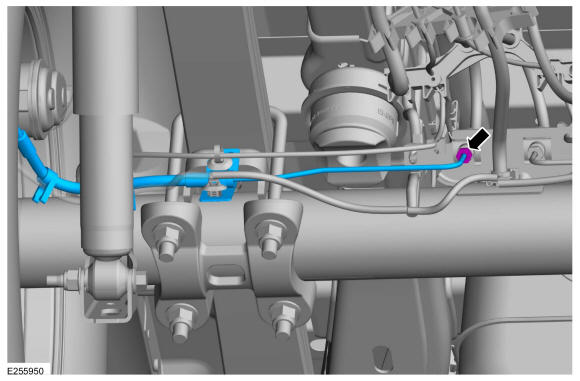

Left hand (LH) outer brake hose
Disconnect the brake tube fitting and remove the LH rear outer brake flexible hose/tube assembly.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
