Rear Brake Inner Flexible Hose - Raptor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

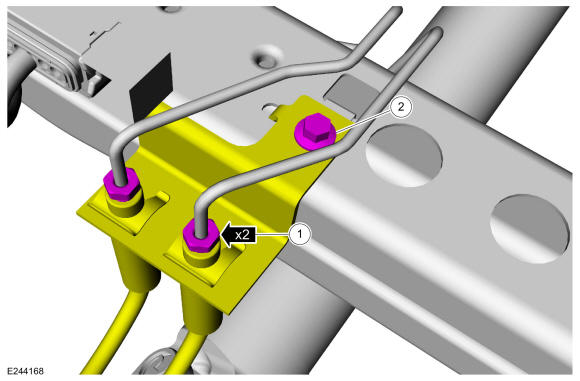

1. Disconnect the brake tube fittings.
  Torque: 159 lb.in (18 Nm)
2. Remove the upper bracket bolt.
  Torque: 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

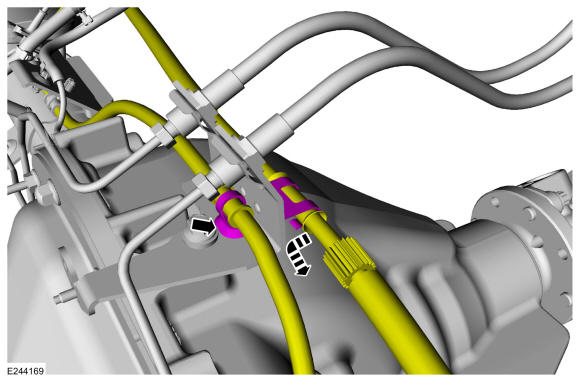

Detach the wheel speed sensor harness retainer and the parking brake cable.

Courtesy of FORD MOTOR COMPANY
1. Disconnect the brake tube fittings.
  Torque: 159 lb.in (18 Nm)
2. Remove the lower bracket bolt and the rear brake inner flexible hoses.
  Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
