Rear Brake Disc Shield: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the axle shaft. Refer to: Axle Shaft (8.8 Inch Ring Gear) . Refer to: Axle Shaft (9.75 Inch Ring Gear) .

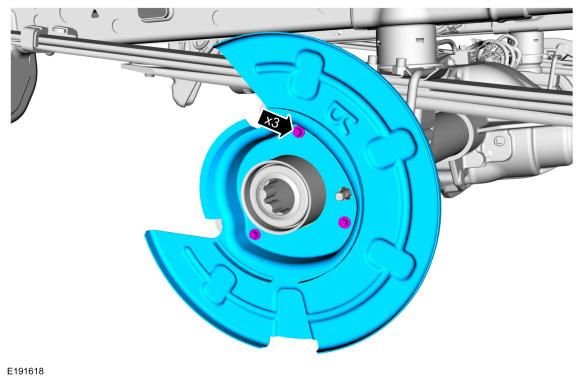

- Remove the 3 bolts and the brake disc shield.
Torque: 159 lb.in (18 Nm)
