Rear Brake Caliper Anchor Plate: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake pads. Refer to: Brake Pads .

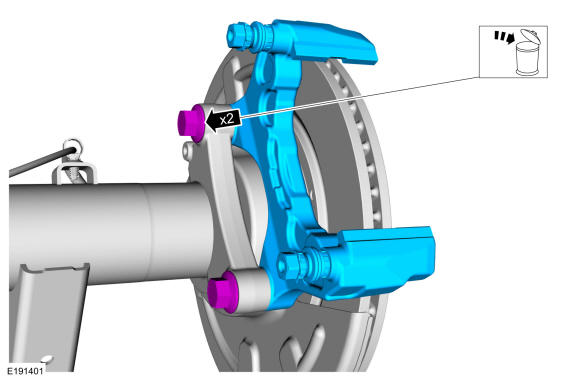

- Type 1 Remove the 2 bolts and the anchor plate. Discard the bolts
Torque: M16 Bolt: 181 lb.ft (245 Nm)

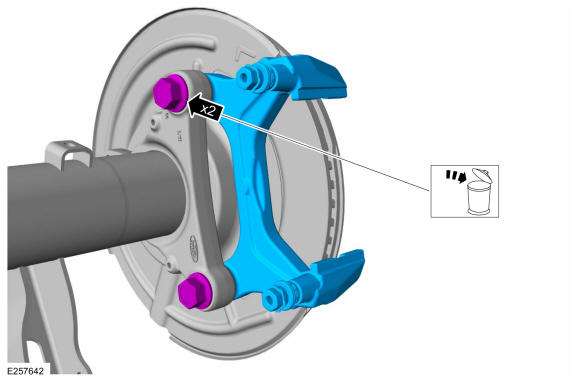

- Type 2 Remove the 2 bolts and the anchor plate. Discard the bolts
Torque: M18 Bolt: 258 lb.ft (350 Nm)
