Rear Wheel Bearing: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

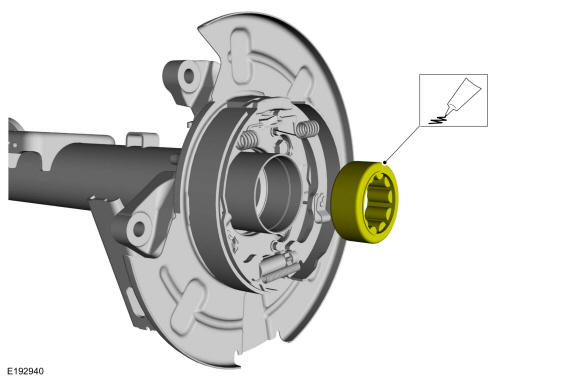

Lubricate the new rear wheel bearing.
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY

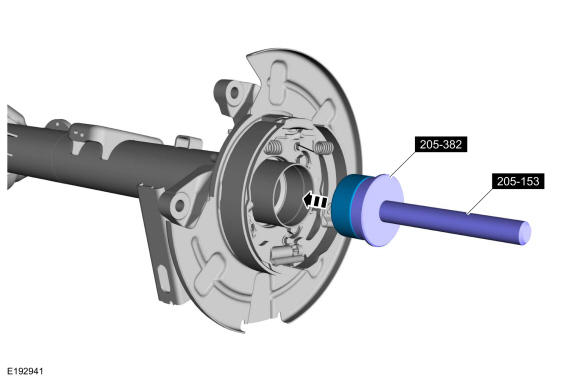

Using the special tools, install the new rear wheel bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-382 (T97T-1225-A) Installer, Rear Axle Differential Bearing.

Courtesy of FORD MOTOR COMPANY

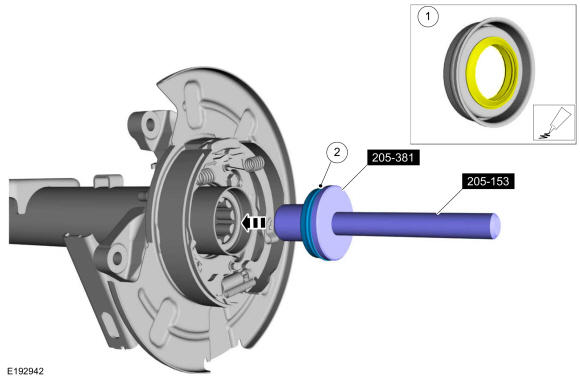

- Lubricate the axle shaft seal lip.
  Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
- Using the special tools install the new axle shaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-381 (T97T-1177-A) Installer, Rear Axle Oil Seal.
Courtesy of FORD MOTOR COMPANY
Install the axle shaft. Refer to: Axle Shaft .
