Drive Pinion Seal: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive pinion flange. Refer to: Drive Pinion Flange .

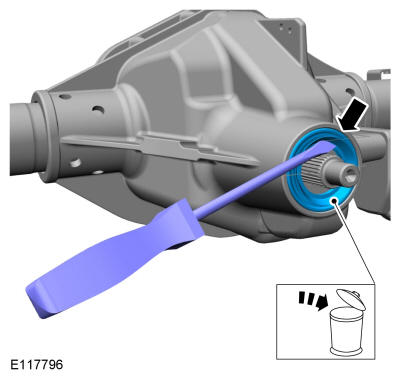

  2. Using a flat blade screwdriver, remove and discard the drive pinion seal. Use the General Equipment: Flat-Bladed Screwdriver
GFD458133Courtesy of FORD MOTOR COMPANY
